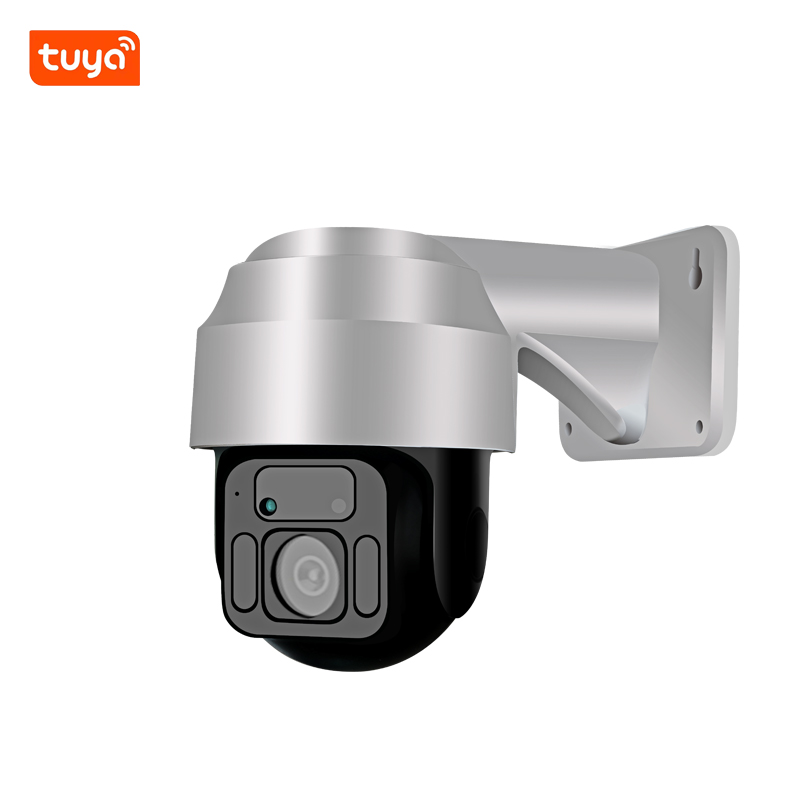

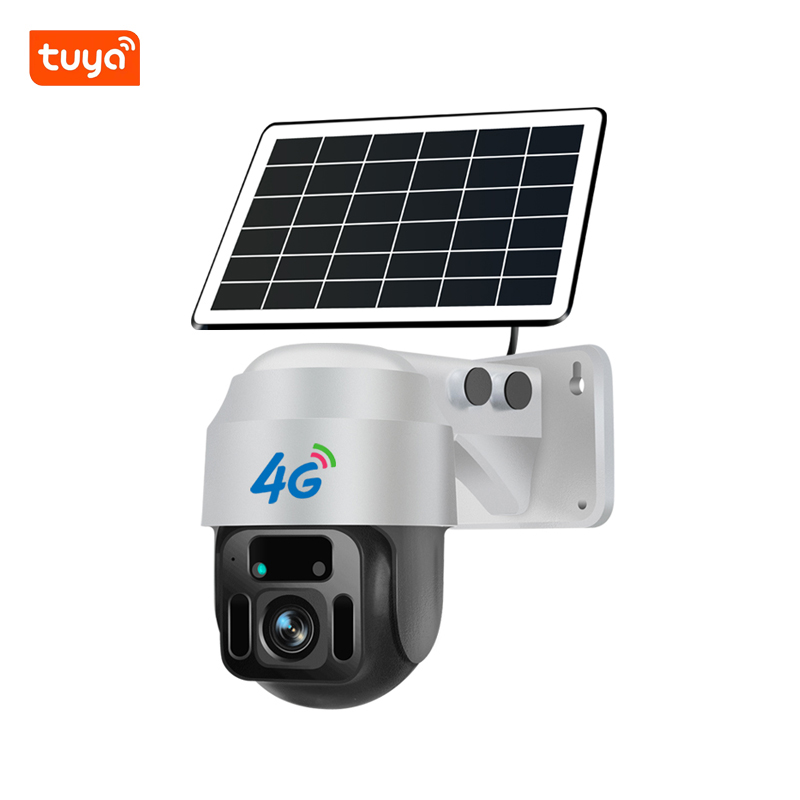

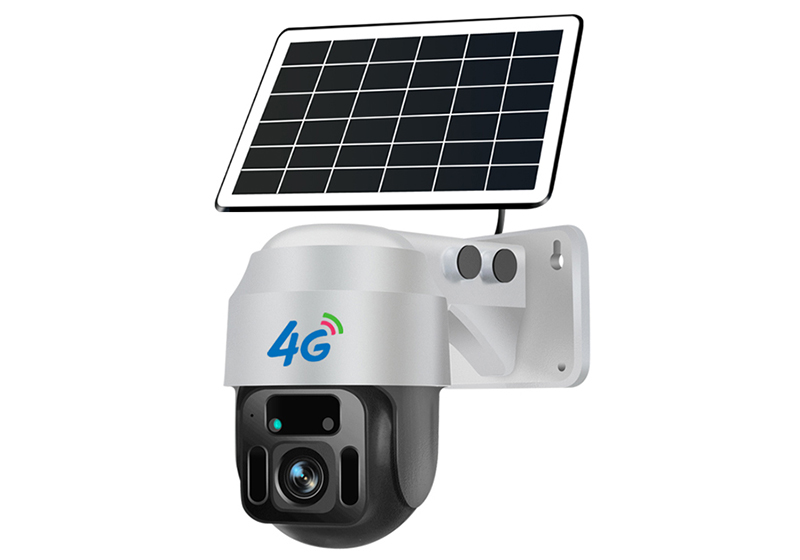

18413# 涂鸦Q5太阳能云台摄像机、免电源免宽带太阳能监控摄像头

供应商资料:

型号: HK-TY-Q5
公司: 深圳海科视频科技有限公司
联系人: 郑先生
手机: 15818606348
QQ: 80430359
微信: ABX1980
邮箱: 80430359@qq.com
地址: 深圳市龙岗布吉坂田剑业高新科技园C栋3楼

数据包下载-压缩图标-logo下载:18413#-涂鸦Q5太阳能云台摄像机-HK-TY-Q5

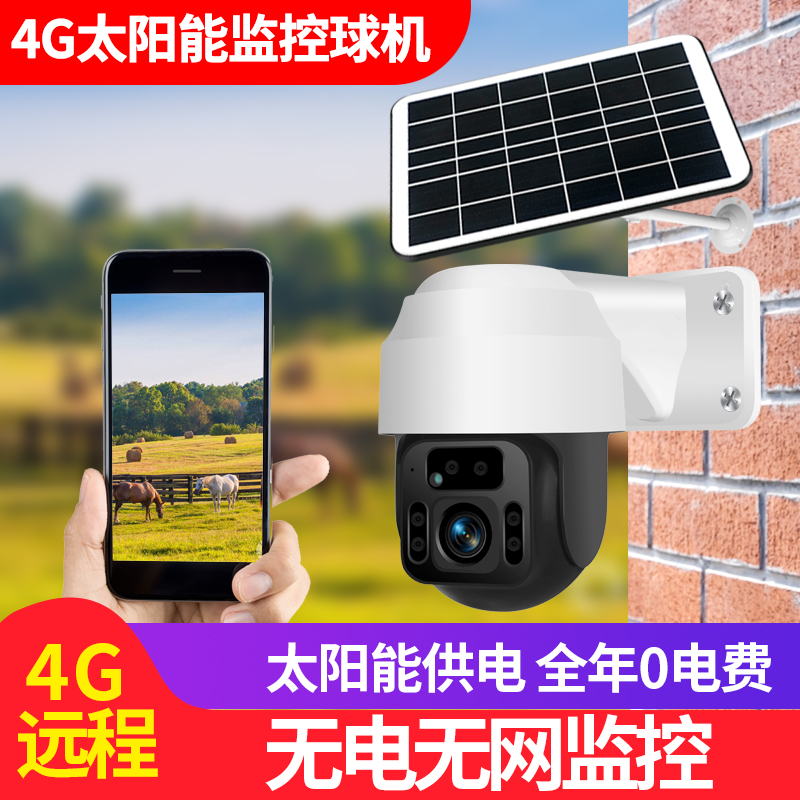

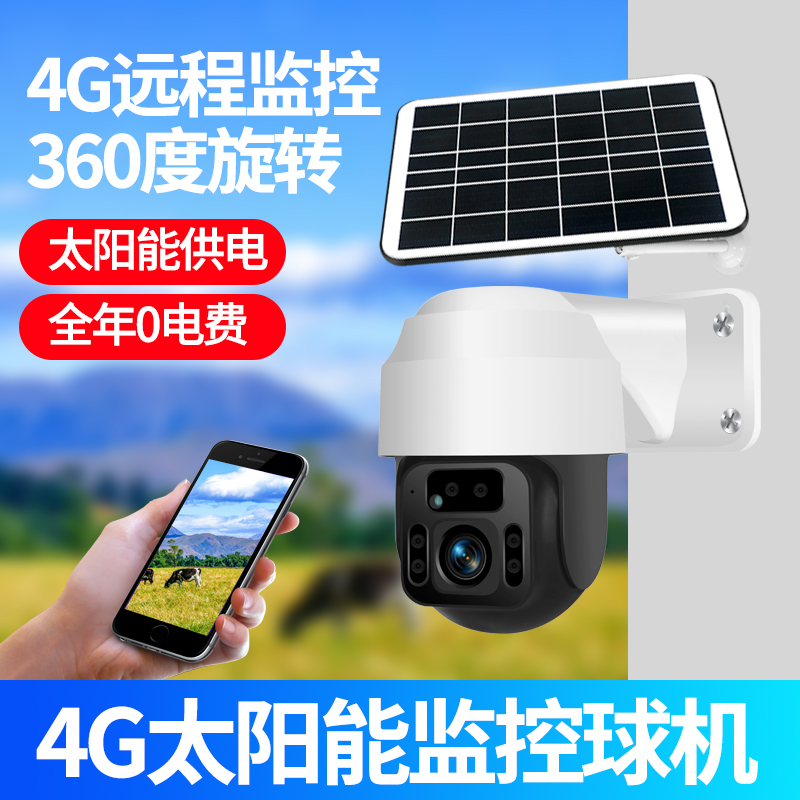

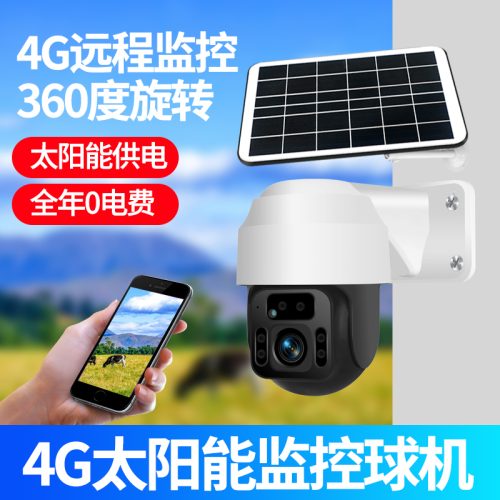

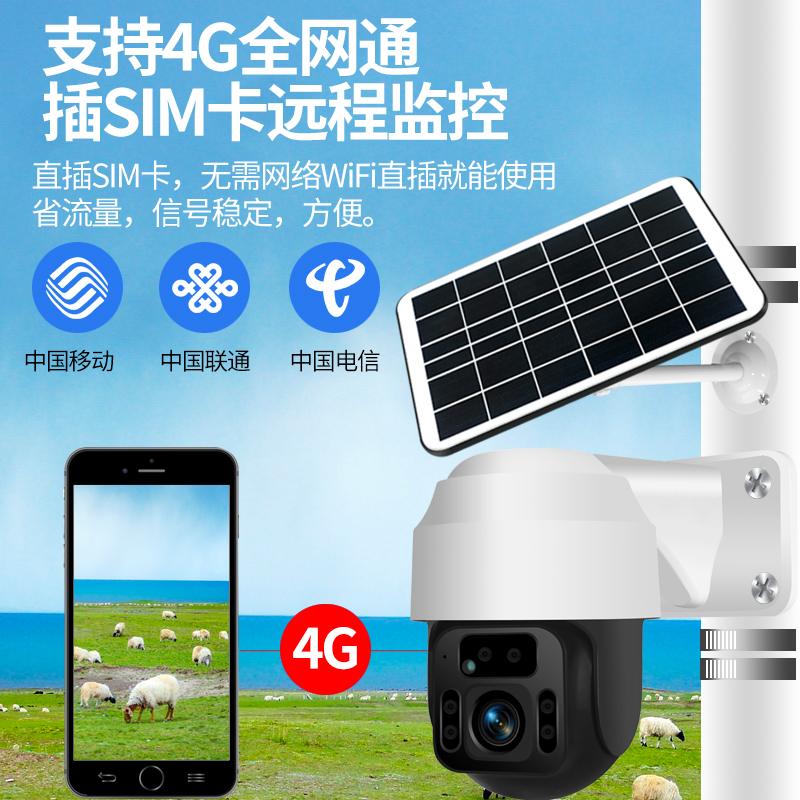

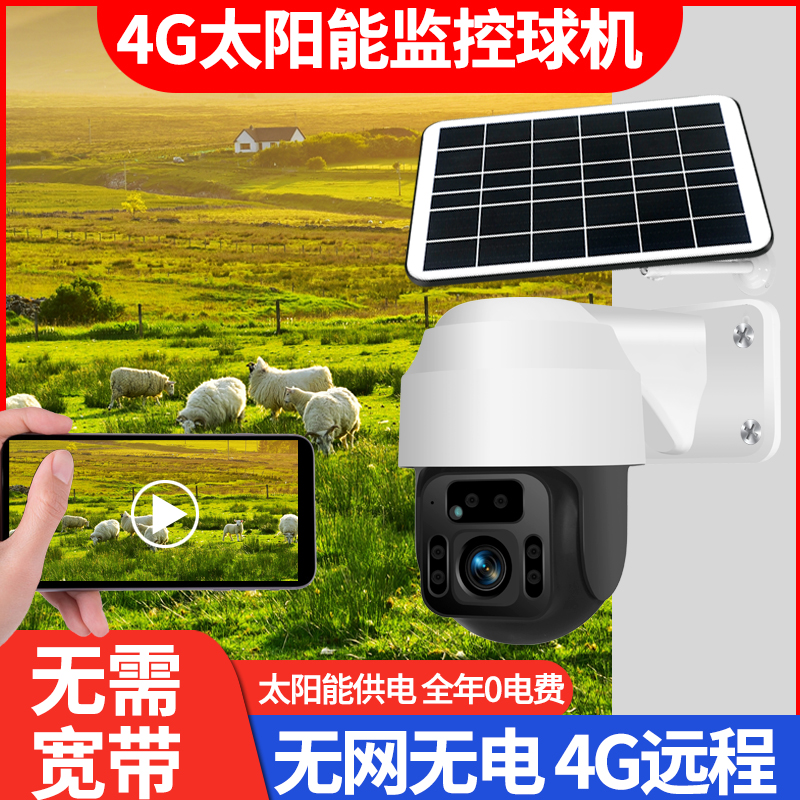

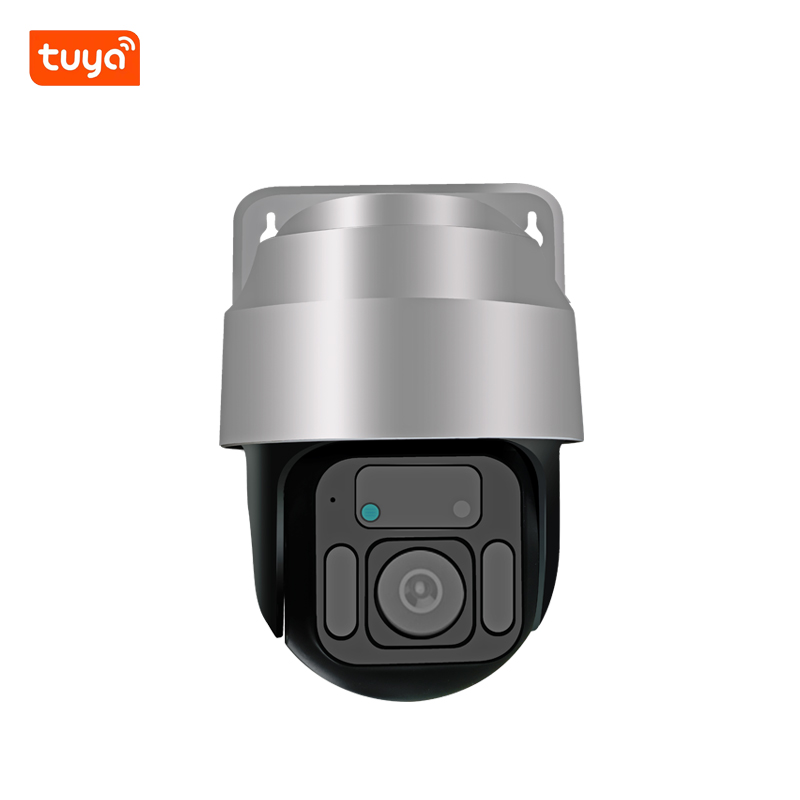

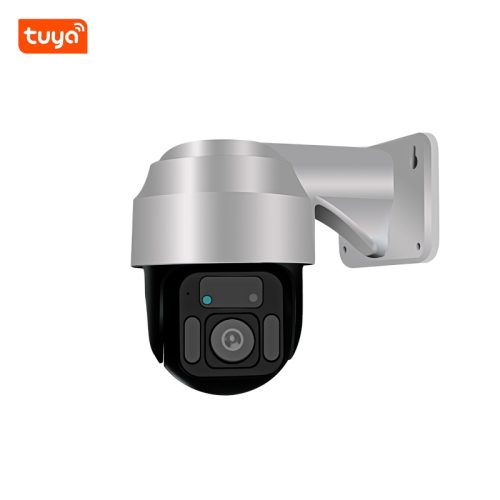

产品图片:
产品详情:
产品参数:

※ 太阳能充电摄像机外壳采用优质塑料外壳和金属前盖;
※ 摄像机采用精密加工工艺,密封性好,防水等级:IP66,适合室外环境下使用;

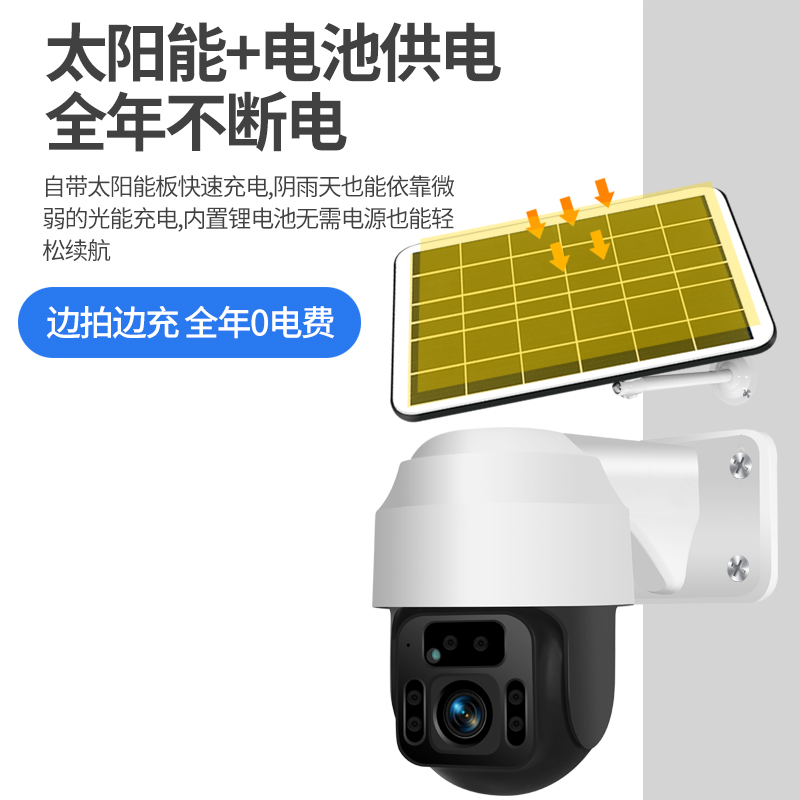

※ 摄像机采用总容量12000毫安时聚合物锂电池供电,通过上盖太阳能板和大功率6W高性能外接太阳能板充电;
※ 设备可以超低功耗、超长时间待机,并有智能省电功能,纯电池待机时间150天以上,配置太阳能充电功能后,设备可以全年免维护工作;
※ 采用1/3高清感光芯片,图像分辨率:1080P,200万像素,画质清晰细腻,色彩还原度好;
※ 摄像机配置ICR双滤光片切换器,自动彩转黑,内置高性能低功耗LED灯,可有效提高夜视清晰度画面;
※ WIFI电池摄像机配置高能性的WIFI模块,外置专业定制的WIFI天线,更强接收WIFI信号稳定,距离远,不掉线;
※ 摄像机内置雷达感应报警,设置后,侦测到人体,摄像机可立即推送报警信息至手机APP;能做到更有效的事前防范工作;
※ WIFI电池摄像机,具有远程唤醒功能、雷达报警推送功能,手机APP响应及时,随时随地想看就看;
※ 内置拾音器、喇叭,用户可通过手机APP监听,并可以实现实时远程视频语音对讲;
※ 采用高性能DSP编解码芯片,主机可以应对各种复杂情况,反应迅速;
※ 采用体验感极佳的新版手机APP,良好的人机互动,更符合终端客户使用习惯;
※ 摄像机最大支持64G,TF卡存储,最长录像达约为160小时,可设置自动覆盖,在手机APP上查看报警录像视频;
※ 产品支持断网录像,配置好WIFI后,如发生网络中断,雷达报警可以正常触发、录像,连接上网络后,可以读取录像信息;
※ 专业制造工厂出品,产品通过多项国内、国际认证,安全、放心、省心;
※ 云台球机旋转水平角度为355°,垂直角度为90°。该产品防水等级高:IP66;电池+太阳能供电,无需布线,免维护,适合各种不便取电的室外环境下使用,别墅、小区、庭院、鱼塘、果园、菜地、外宠物屋等等。灵敏的雷达感应报警,在WIFI环境下,可以随时远程唤醒设备,观看视频、查看录像。

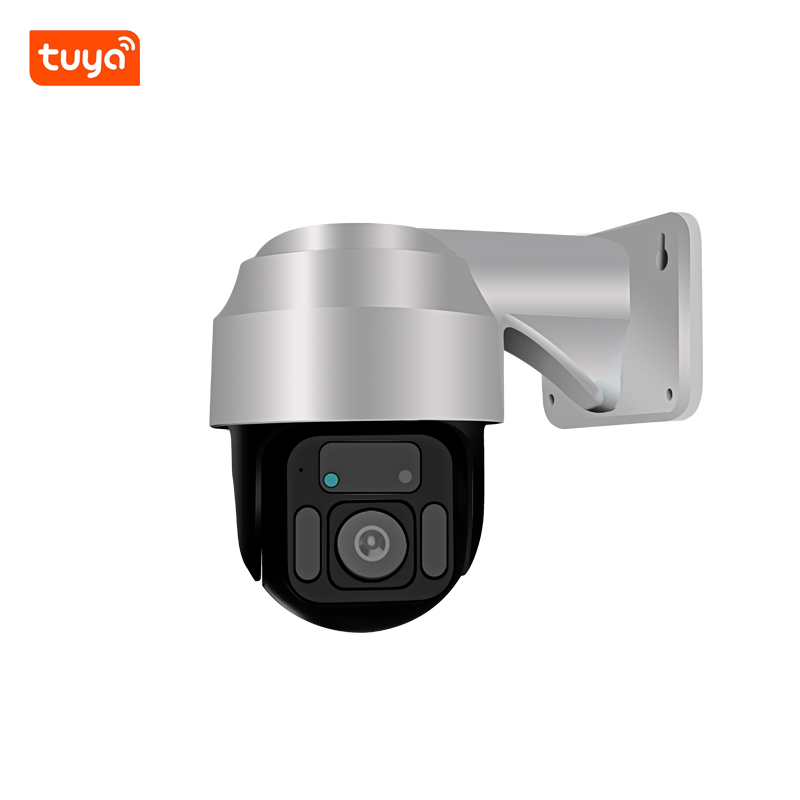

Product Name: WiFi solar PTZ battery camera
Model No.: HK-TY-Q5
Product Features:
※ The solar charging camera’s use high-quality plastic shell and metal front cover,Waterproof grade IP66;
※ The camera adopts precision processing technology with good sealing,high
sensitivity waterproof ,and it can be used both indoors and outdoors.
※ The camera is powered by a lithium polymer battery with a total capacity of 12000
mAh and charged by the top solar panel and external solar panel.
※ Ultra-low power consumption, super long time standby, and intelligent power saving function, standby time more than 150 days;
Charging by solar energy, the equipment can be maintained used without maintenance throughout the year
※ Uses 1/3 high-definition photosensitive chip; Picture resolution: 1080p, 2MP;Clear and delicate picture quality , good color reproduction
※ With ICR double filter switcher, automatic color turn black, built-in low power infrared LED light, can effectively improve the night vision sharpness;
※ High power WiFi module built into the equipment, external professional customized WiFi antenna, stronger receiving WiFi signal stability, do not drop the line,distance is far, no drop.
※ PIR function: After setting, the human body is detected, and the camera can immediately push the alarm information to the mobile APP.
※ Remote wake-up function, Radar alarm push function, mobile phone app response in time, anytime to see;
※ Built-in pickup, horn, users can monitor through the mobile phone app, and can realize real-time remote video voice intercom;
※ Using High-performance DSP codec chip, the host can deal with a variety of complex situations, rapid response;
※ Good experience of low-power equipment dedicated app, simple operation, full-featured, product settings can be set through the mobile phone app;
※ Supports maximum 64G TF card storage, or select cloud storage to meet different customer requirements. Up to 160 hours of recording and automatic overlay can be set, and you can View alarm video on your phone APP
※ Product support network recording, after configured WIFI, such as network interruption, Radar alarm can be normal triggered and recorded, connected to the network, you can read the recording information;
※ Professional factory production;
※ The horizontal angle of the pan/tilt ball machine is 355°, and the vertical angle is 90°.
Product application range:
The product waterproof rating is high: IP66;Solar camera powered by battery and solar, no wiring, maintenance-free, suitable for all kinds of inconvenient outdoor environment,For example, villas, neighborhoods, courtyards, fish ponds, orchards, vegetable fields, outdoor pet houses and so on. Sensitive Radar body induction alarm, in the WIFI environment, you can wake up the device remotely at any time, watch the video.

The main parameters:

Operating systemLinux
Image sensor1/3 million pixel CMOS
Minimum illuminationColor 0.6 lux@f1.2
Day and night modeIr-cut Double Filter Automatic switching,LED light start
Lens3.6MM million HD lens
Video compressionH.264, support dual code flow
Video modeHD/SD
Maximum image sizeMain stream 1920×1080; sub-code stream: 640×480;
Resolution1080P: 2MP
Frame rate25 Frames
Audio codingG726, G711, AAC, MP3 format, 8K sampling rate, support echo cancellation function
Audio inputBuilt-in mic
Audio outputInternal speaker
Real StandbyBuilt-in MCU, support true standby function, support infrared, key, Gpio alarm wake-up main system; system standby power consumption 60uA
Wireless network2.4GHzIEEE 802.11b/g/n
Storage FeaturesSupport Micro SD card storage, Max 128G
Intelligent AlarmMobile smart sensor alarm, AI smart tracking and shooting
Infrared lampHigh performance LED lights, effective distance of 15 meters
Battery12000 mah polymer lithium battery, charge voltage: 5v2a
Standby time150 days
Power0.75W (work) 0.0025W (standby)
Working environment–10°c~60°c/20%~85% (non condensation)
