6043#无人机专用5.8G-800TVL迷你图传一体机摄像机

供应商资料:

型号:FPV无线图传LST-S2
公司:深圳市朗视特电子有限公司
联系人:殷朝贵
手机:13510777591
QQ:286739607
微信:yCg513
邮箱:286739607@qq.com
地址:深圳市石岩镇石龙仔社区腾杰顺工业园A3栋12楼
网址:https://www.gearbest.com/camera/pp_666807.html

数据包下载-压缩图标-logo6043#无人机专用迷你图传一体机摄像机-LST-S2

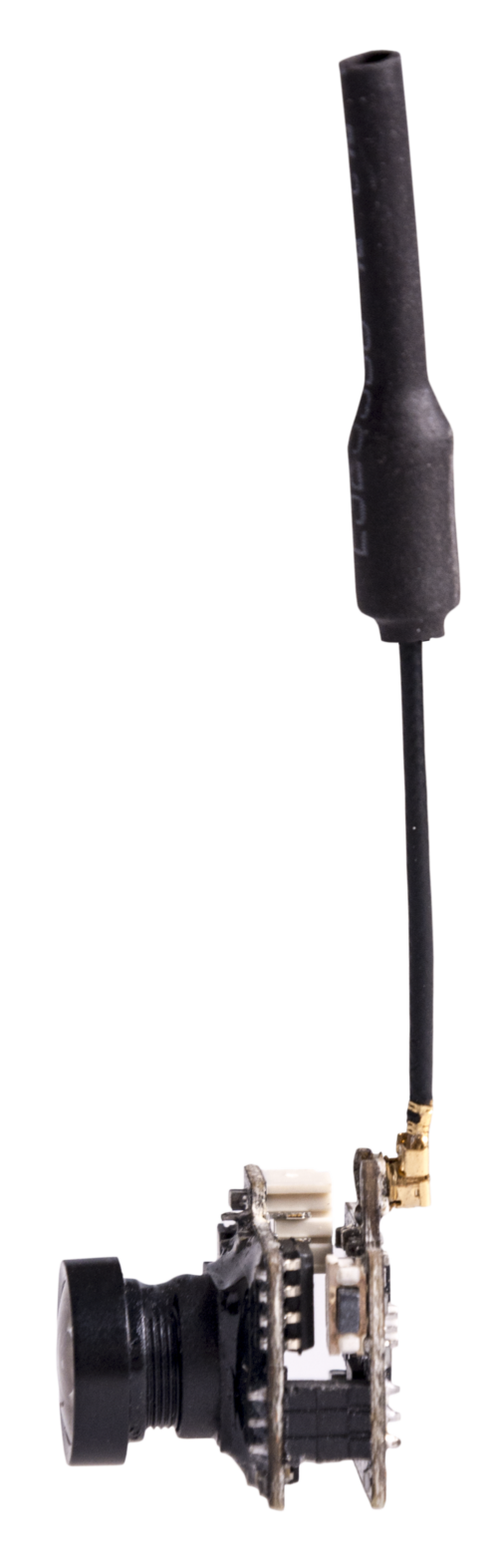

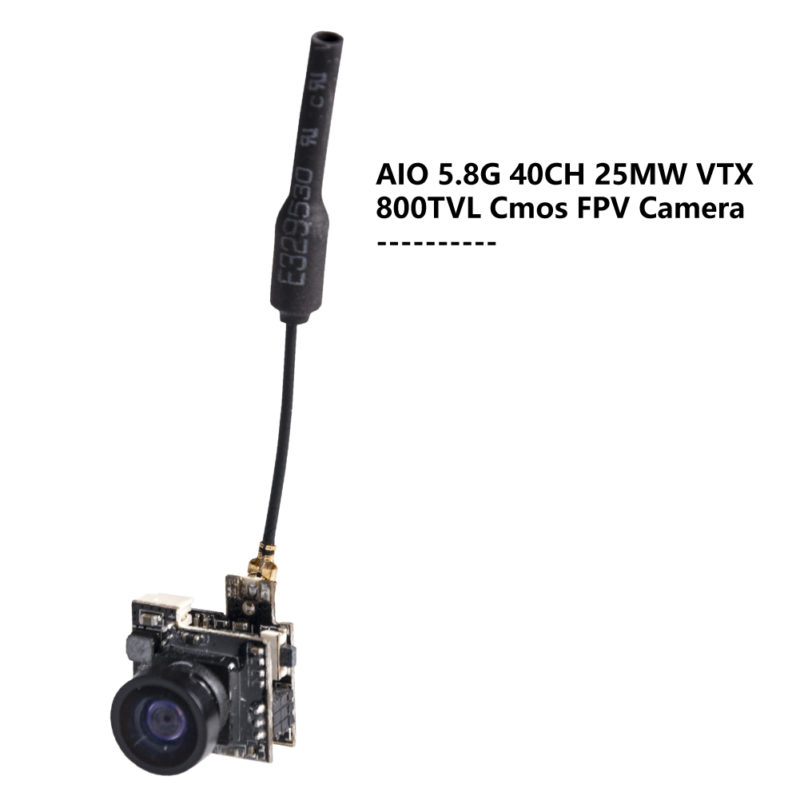

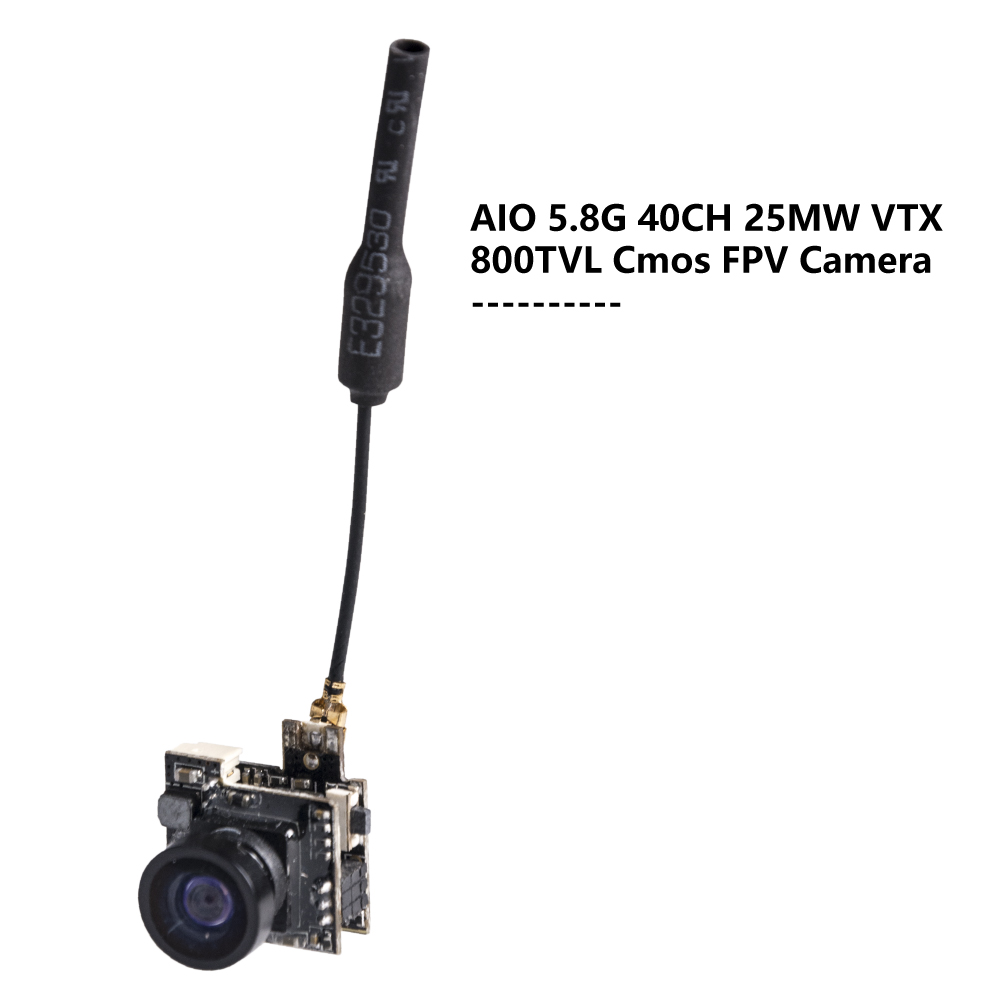

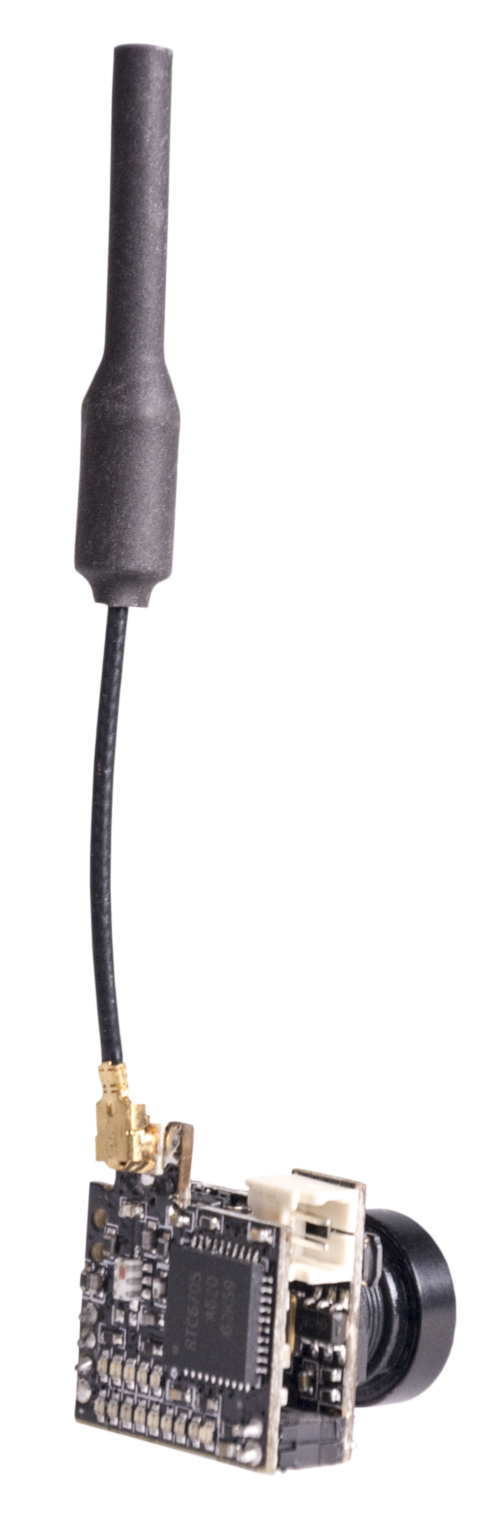

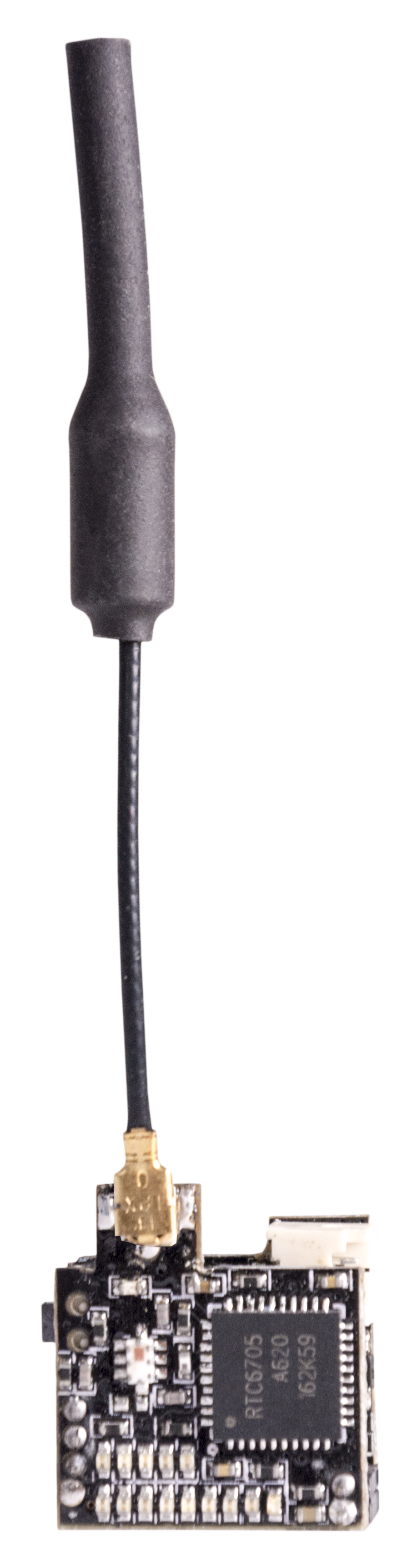

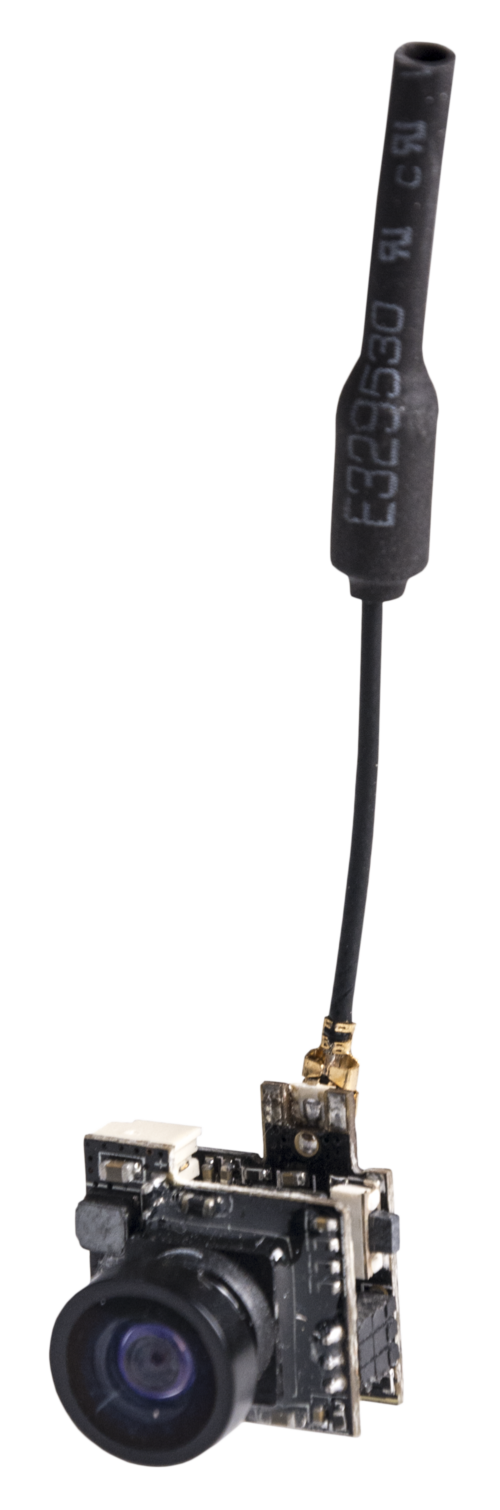

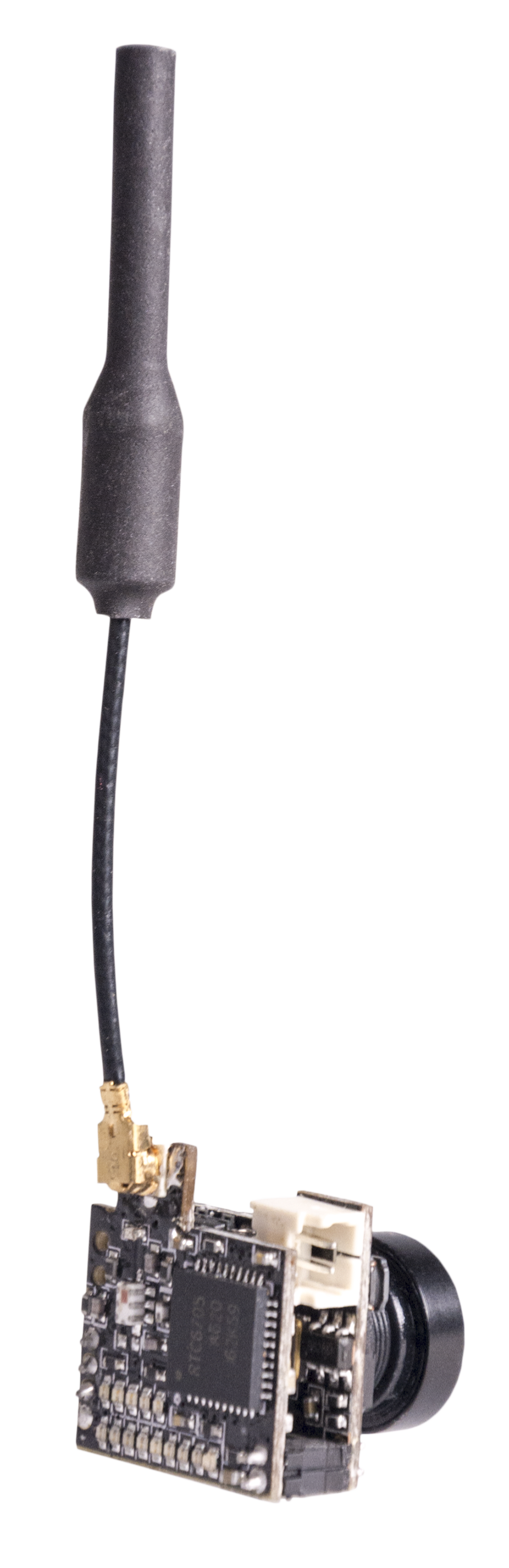

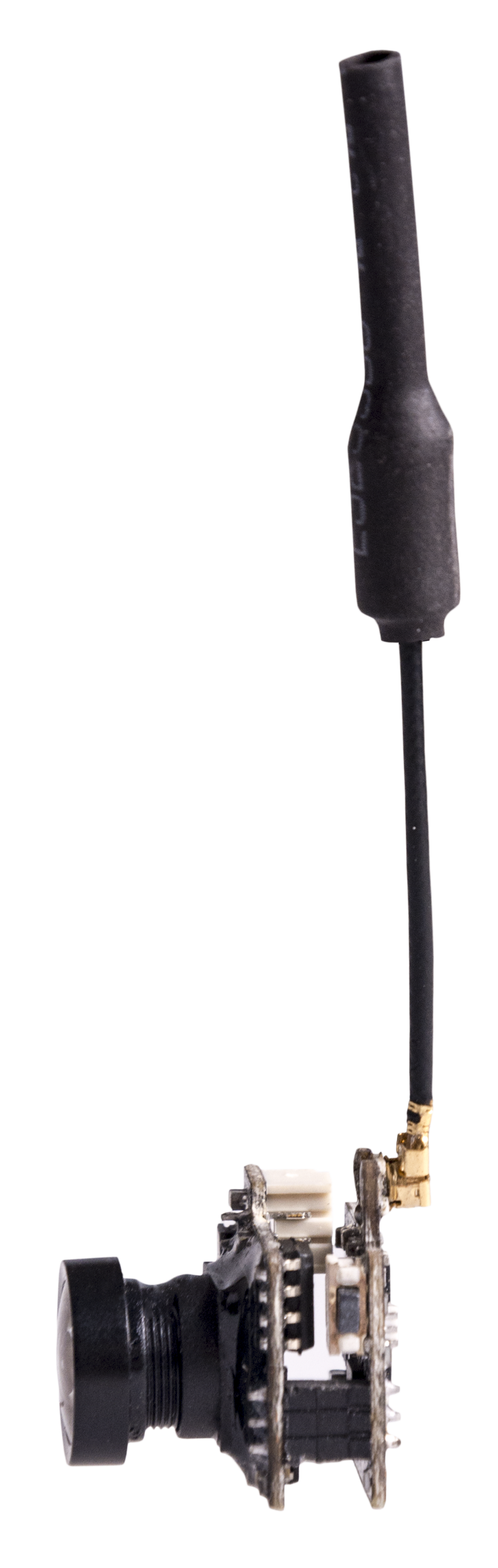

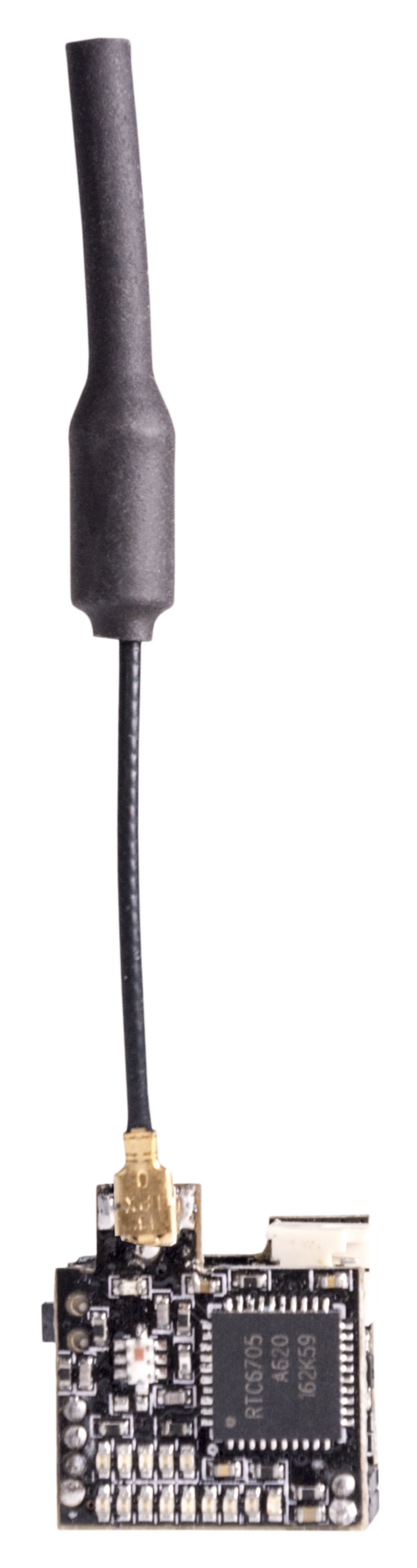

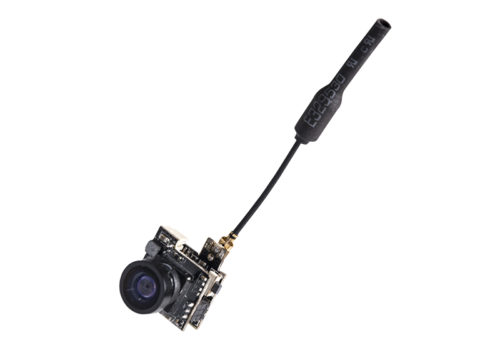

产品图片:
产品详情:
产品参数:

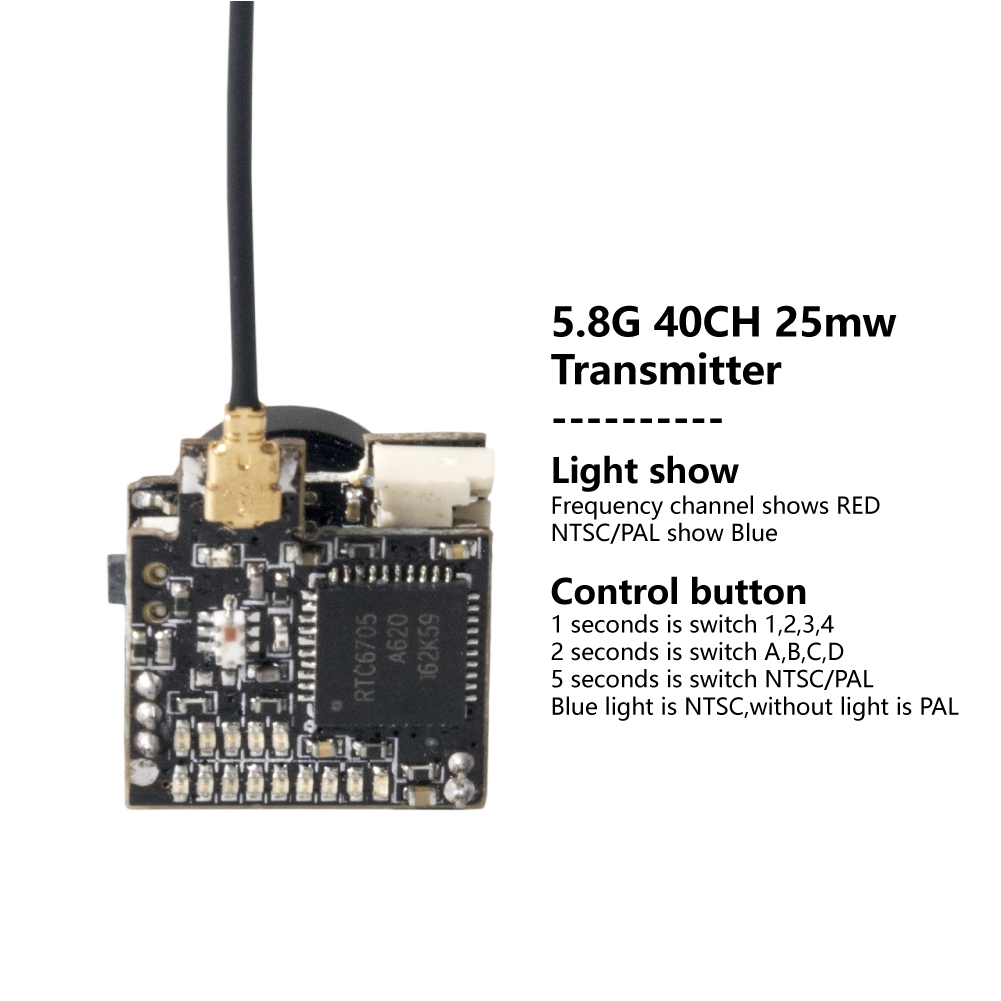

Features:

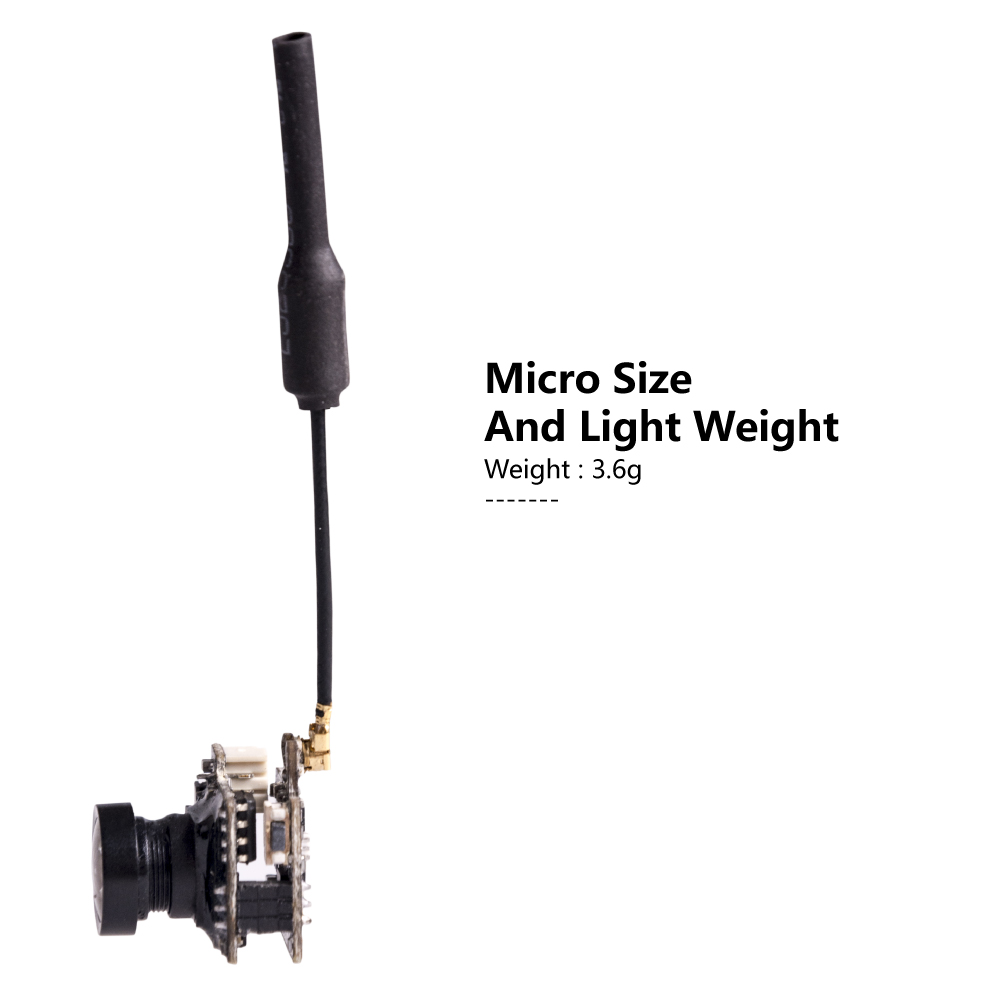

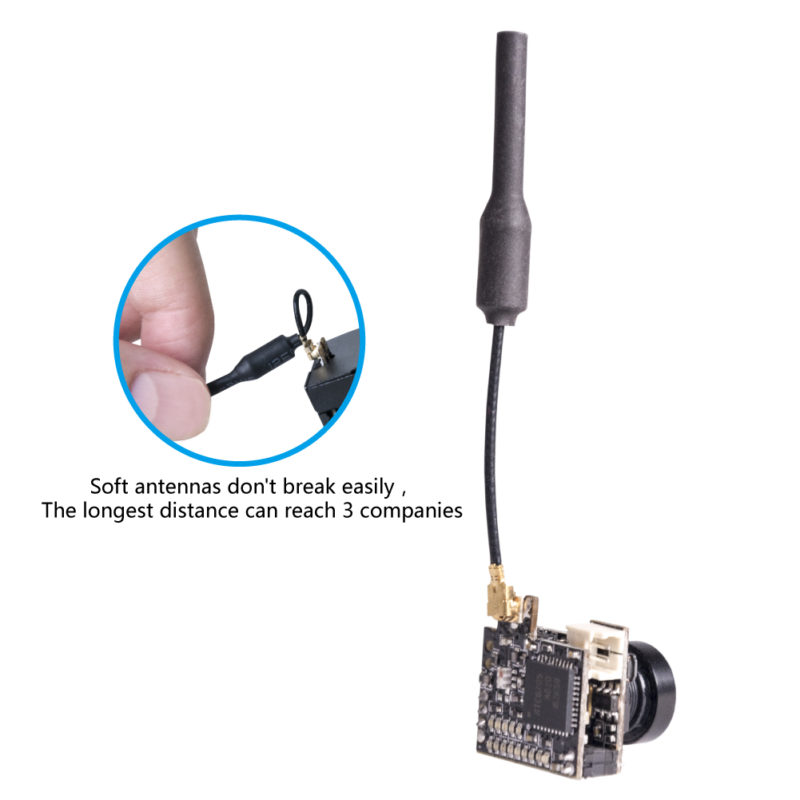

● Super light, only 3.6g including 800TVL HD camera, VTX and antenna
● Ultra wide angle lens, 150-degree FOV, 170-degree DFOV
● Five bands, 40 channels in total, with RaceBand ( Band R )

Specifications:
Sensor: 1/4 inch CMOS
Lens: M7 800TVL HD
Angle of view: 150-degree FOV, 170-degree DFOV
Power consumption: 380mA at 3.7V
Power supply: 3.6 – 5.5V
TV system: NTSC / PAL switchable
Output impedance: 75 ohm
Output signal strength: 23 – 24dBm
Output power: 25mW
Number of channels: 40
Audio carrier: 6.5MHz

Specification

GeneralFPV Equipments: FPV Mini Camera
Functions: Video
CameraSensor: CMOS
Dimension and WeightProduct weight: 0.0036 kg
Package weight: 0.0400 kg
Product size (L x W x H): 1.50 x 1.50 x 7.00 cm / 0.59 x 0.59 x 2.76 inches
Package size (L x W x H): 7.20 x 7.20 x 3.50 cm / 2.83 x 2.83 x 1.38 inches
Package ContentsPackage Contents: 1 x AIO FPV Camera, 1 x Cable, 1 x English Manual

Product Safety Disclaimer:
We do not accept any responsibility or liability for misuse of this or any other product. All our products are extensively tested to comply with rigorous and strict QC standards. For certain products (e.g. toys, knives, etc.), we recommend proper supervision as we cannot be held liable for misuse or accidents.

Small Parts Disclaimer:
These toys contain small parts, not for children under 3 years in case of swallowing or choking . We do not accept any responsibility or liability for misuse of this or any other product.
