1501# WiFi高清自动对焦防水IP监控摄像头

深圳艾赛德科技有限公司 联系人: 彭小姐 手机: 13632665685

供应商资料:

型号: IP-851
公司: 深圳艾赛德科技有限公司
地址: 深圳市龙华新区油松水斗老围村南工业区C栋
网址: www.estcctv.com www.asdibuy.com
联系人: 彭小姐
手机: 13632665685
QQ: 104608203
微信: 13632665685
邮箱: szes@estcctv.com

数据包下载-压缩图标-logoDatabase-1501

艾赛德科技(香港)有限公司积聚多年的研发、生产、销售安防产品的专业经验,于2007年5月成立于香港,并于同年在中国深圳成立了深圳艾赛德科技有限公司。
公司主要从事安防产品,CCTV摄像头的生产和销售。
深圳艾赛德科技有限公司在安防行业集研发、制造、销售于一体,拥有一批专业精英人才,根据市场的需要,开发并生产了多种适合市场的产品.
主要如下:摄像机\网络摄像机\有线MINI DVR\有线DVR\无线摄像机
艾赛德科技已通过ISO9001(2000版)的体系认证,并以 给客户提供高质量的产品为己任:从进口原料到成品,每一个步 骤都经过了严格的质量检测。公司的主要产品都通过了FCC,CE认证,其原料均符合欧盟的RoHS要求。
目前,艾赛德科技的产品已出口至全球,主要出口国家包括: 美国,德国,法国,意大利,澳大利亚,西班牙,巴西,墨西哥, 俄罗斯及东欧市场,等等。

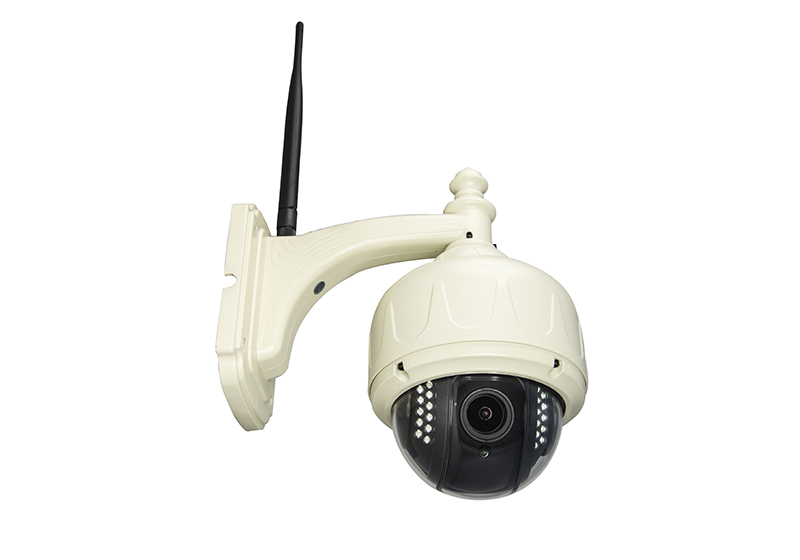

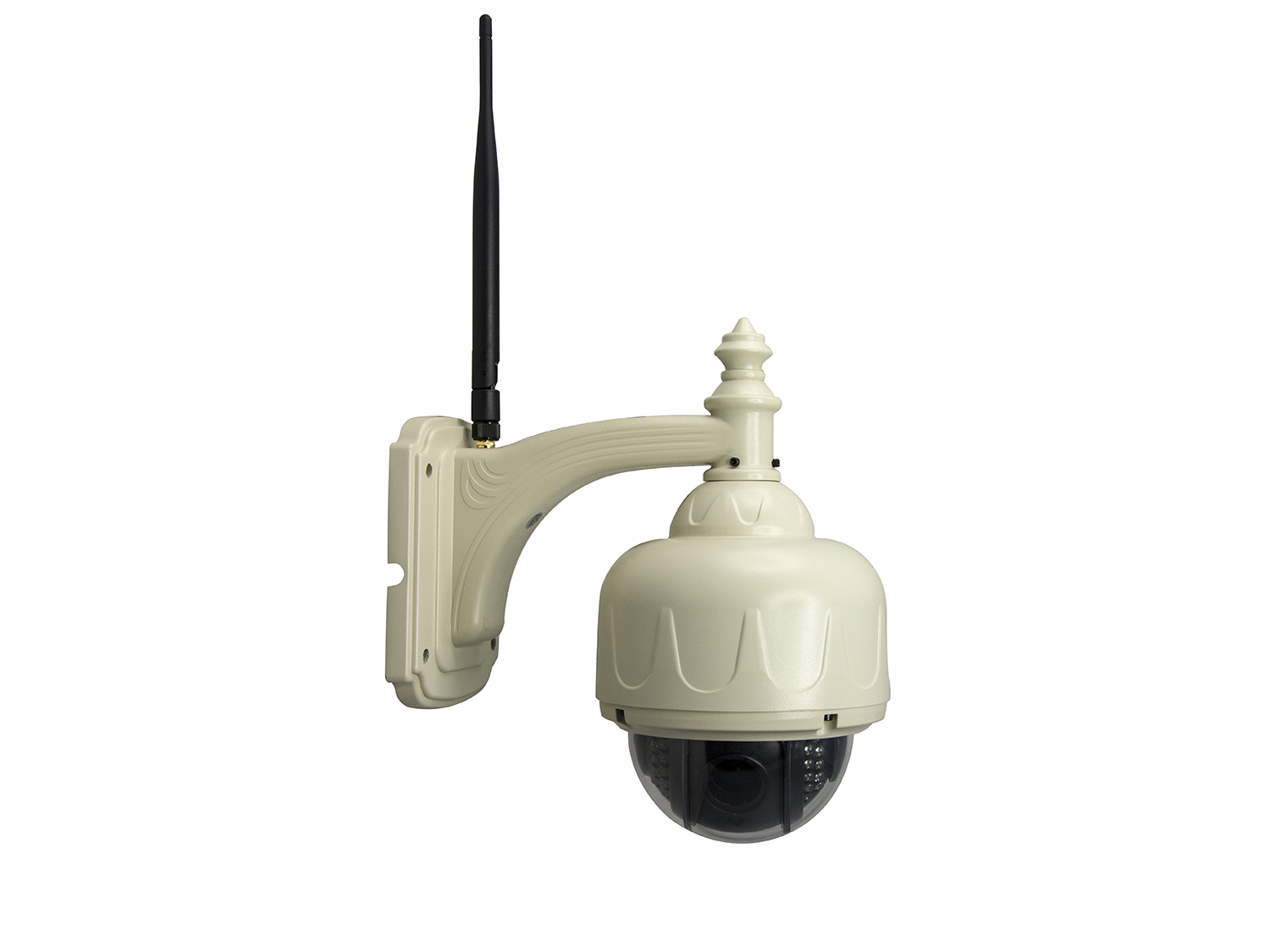

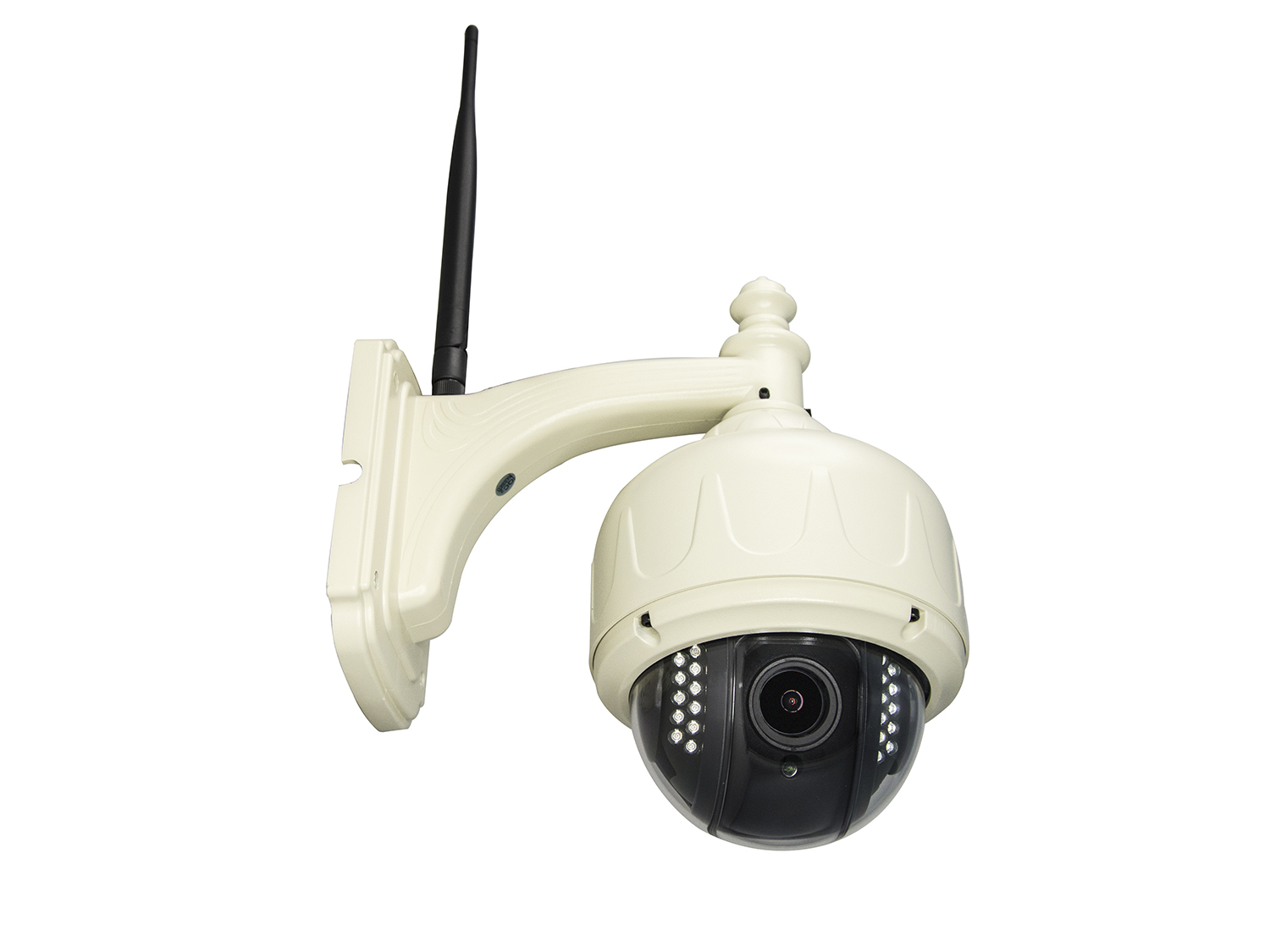

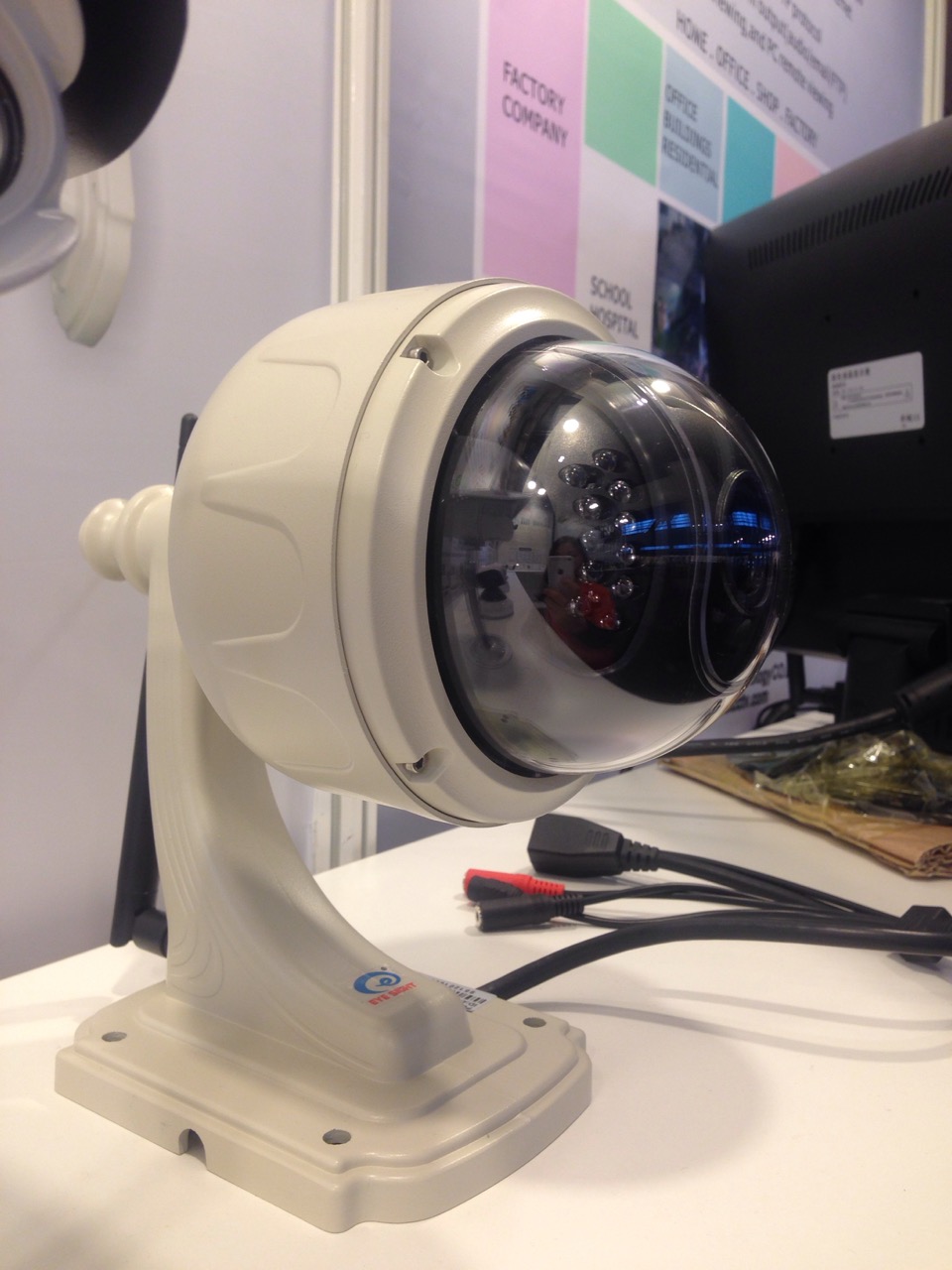

产品图片:
产品参数:

ES-IP851 1.3 Megapixel HD Autofocus Waterproof IR IP Camera

1.3 Megapixel HD autofocus Waterproof IR IP Camera developed by 1.0 megapixel progressive CMOS sensor and high-performance multimedia processor. using embedded Linux operating system, support H.264 Main profile and Baseline profile video coding protocol, support three streams, support G.726 /G.711 audio coding protocol, with advanced Megapixel coding technology, timer capture, support standard ONVIF protocal. It is a high definition and high performance IP Camera that combine video capture, compression, transmission, storage, management function.

Features:

  • HI3518E main chipset
  • high sensitivity and high SNR Micro Megapixel CMOS sensor
  • support 960P/ 720p real-time output
  • 8mm-12mm Professional HD megapixels power zoom lens;
  • support double stream viewing at the same time
  • support two-way voice talk back function
  • support mobile phone remote view, compatible with many smart phone operating platform
  • Support WIFI / 802.11 b/g/n wireless network
  • support ONVIF protocol
  • Support RTSP protocol, using VLC monitor directly
  • built-in SD card slot, Max 32G,timer capture
  • Support alarm pictures to send E-mail
  • support alarm pictures to FTP server
  • support timer capture pictures to SD Card and FTP server
  • support static IP, also support dynamic IP(DHCP)
  • Support manufacture’s DDNS and third party DDNS
  • support P2P Plug and Play
  • support motion detection alarm(can set multiple regions and sensitivity) and sensor alarm
  • can set multiple alarm period, and support alarm linkage
  • support Max 6users browsing at the same time (first stream: 3 users, sub stream: 3 users)
  • support abundant network protocal: TCP/IP, HTTP, TCP, UDP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP, and so on.
  • IE access, Audio/Video stream, TCP use the same port, easy to set on Router
  • Support UPNP port forwarding automatically
  • with PC client software, that can realize monitoring, control, center alarm at different place

Technical parameters

CameraModelES-IP851
Operating systemembedded Linux
ProcessorHi3518E
Image sensor1/3” 1 megapixel progressive CMOS sensor
Minimum illumination0.01Lux
Lens2.8mm-12mm HD automatically zoom 2M pixel lens
Distance15m
 Compression standardVideo compressionH.264 Main profile and Baseline profile adjustable
Audio compressionG.726/G.711 (Default is G.711)
Video compression32Kbps-4Mbps, can self-defined, default is 2048Kbps
Imagevideo resolutionSupport 960P , 720P optional
Video frame rate20fps(50HZ), 20fps(60HZ)
OSDsupport OSD name and Time OSD (on and off available)
Image settingBrightness, Contrast, Saturation, Exposure, Flip and Mirror are adjustable
  FunctionStorageMax 32G SD Card
Motion detectioncan set 4 independent detection area (sensitivity is 1-100 adjustable)
Alarm linkagesending pictures to named mailbox; upload pictures and video to FTP server; pictures and videos to SD Card
Rotation AnglePan:355°  Tilt:90°
Network protocalTCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP, and so on
Access protocalsupport ONVIF, support purview check(default close purview check)
PortAudio Inputbuilt-in Microphone, 1CH Audio Input, support connect external MIC/pickup
Audio Outputbuilt-in speaker, 1CH Audio output, support connect external microphone or amplifier
Network port10Base-T/100Base-TX Ethernet interface
WIFI 802.11b/g/n wireless network
 common specificationPower supplyDC 12V 1A
Size220mm x 128mm x 230mm
Protection rangeIP66
Operating temperature0 ~ +55 ℃
Operating humidity10 ~ 95%RH
