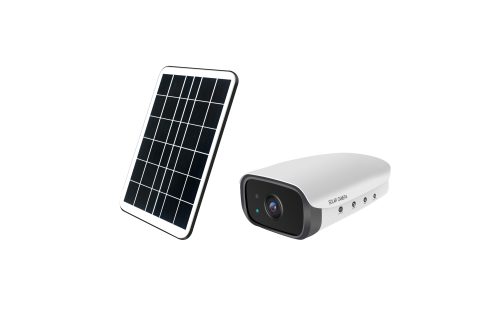

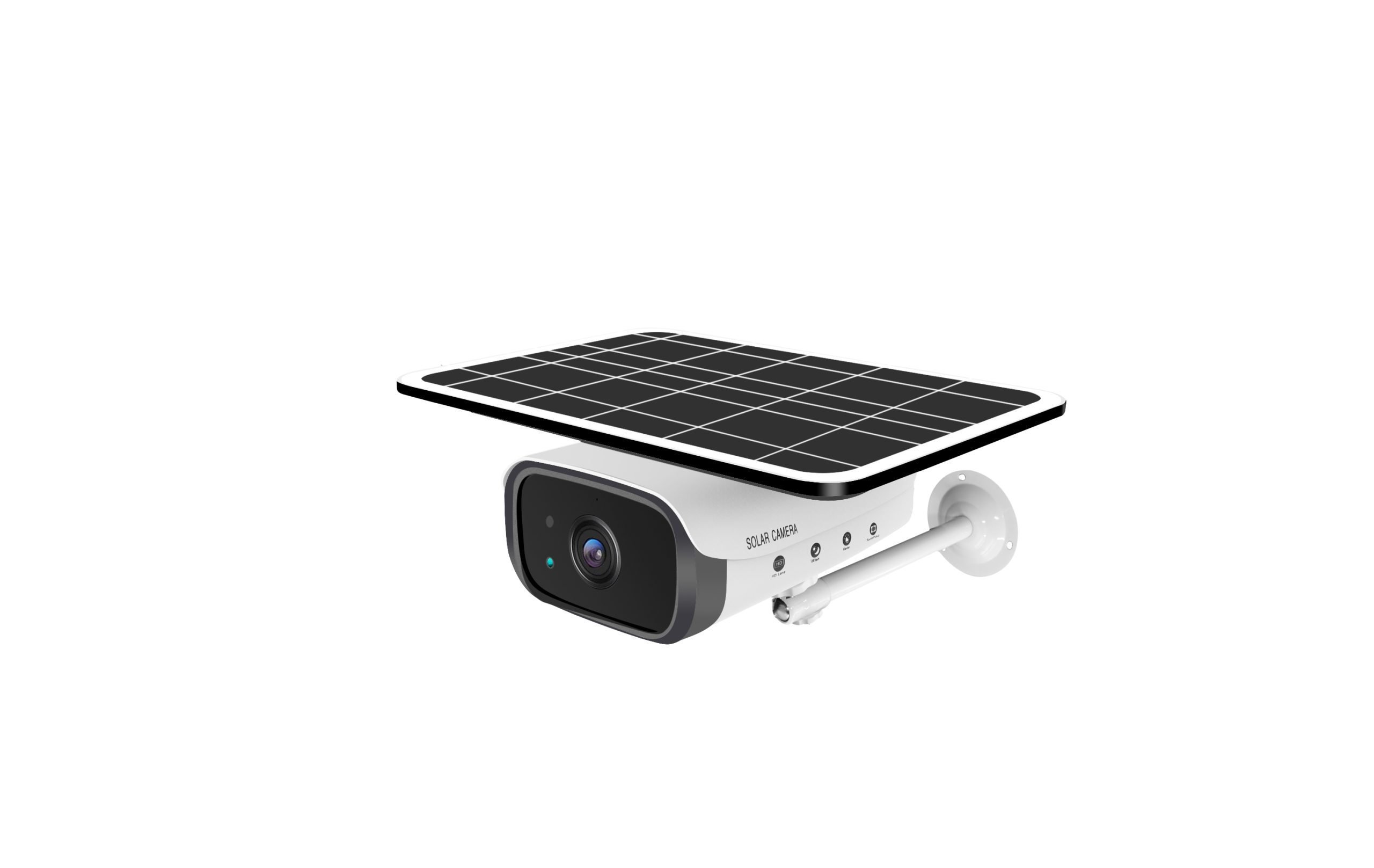

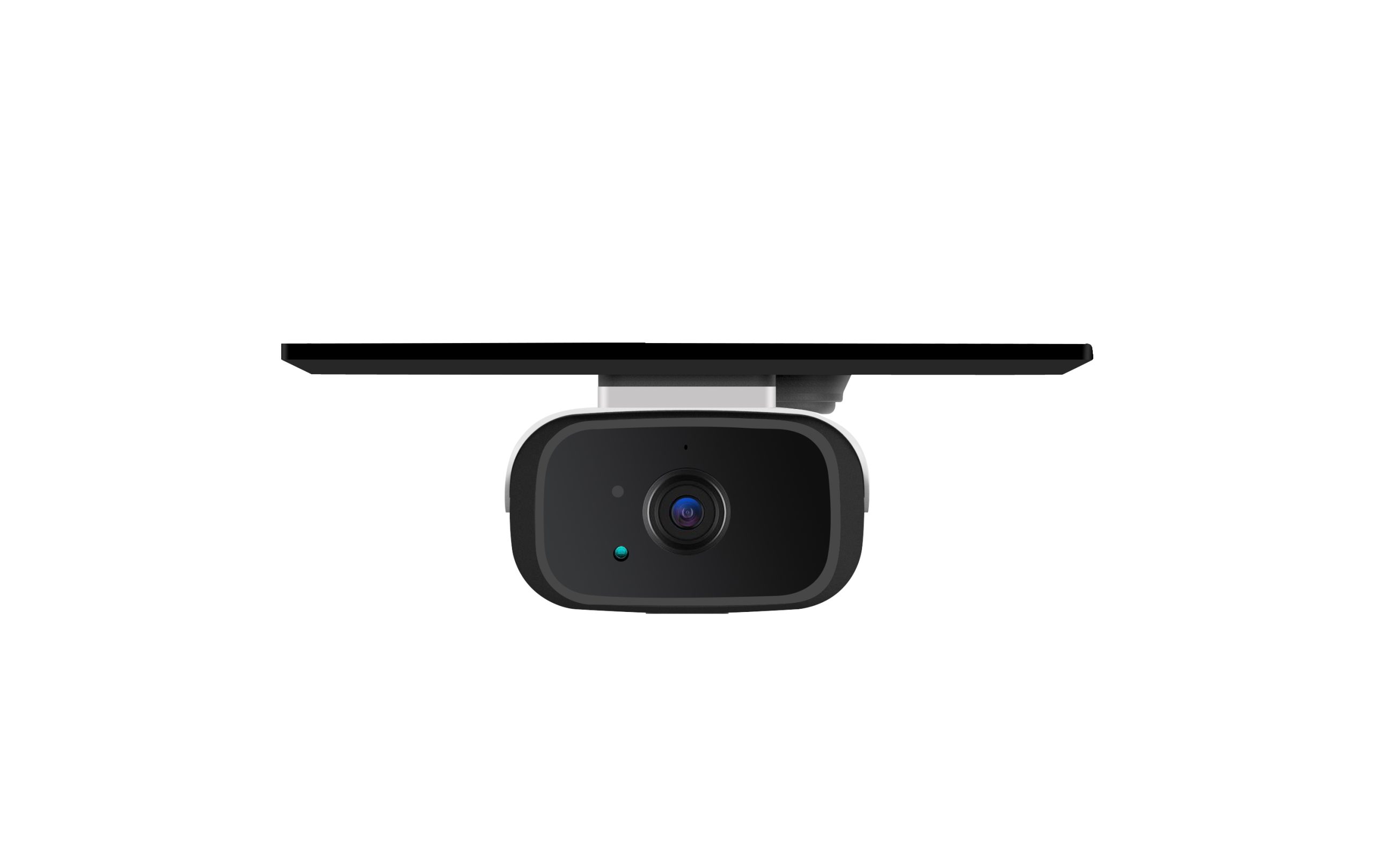

产品标题:WiFi太阳能电池摄像机(涂鸦方案低功耗款)
型号:HK-TY-C5
公司:深圳海科视频科技有限公司
联系人: 郑先生
手机: 15818606348
QQ:80430359
微信:ABX1980
邮箱:80430359@qq.com
地址: 深圳市龙岗布吉坂田剑业高新科技园C栋3楼
下载:18787#-涂鸦太阳能一体枪机摄像机、安防监控摄像头-C5
产品图片:
产品白底图:
产品详情:
产品参数:
Model No.: HK-TY-C5
Product Features:

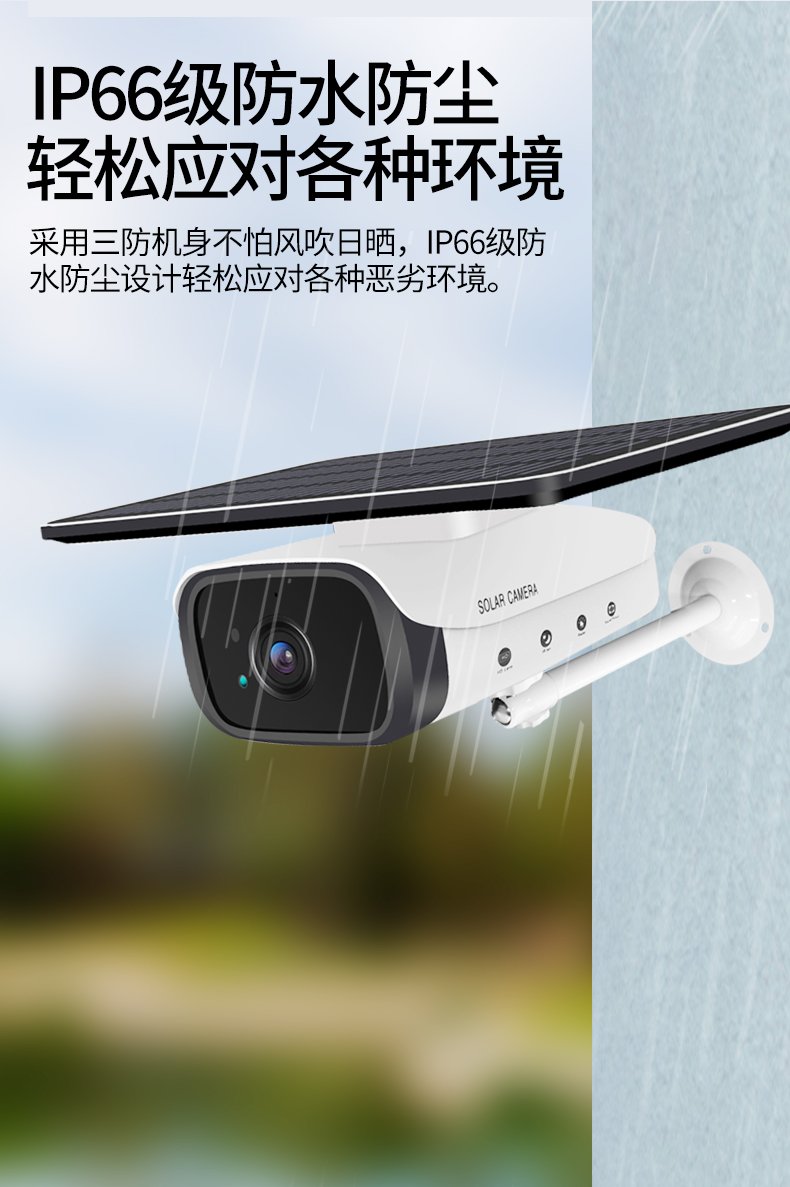

※ The solar charging camera’s outer casing is made of plastic,Waterproof grade IP65;
※ The camera adopts precision processing technology with good sealing,high
sensitivity waterproof ,and it can be used both indoors and outdoors.
※ The camera is powered by three 18650 polymer lithium batteries with a total capacity of 10200 mAh,

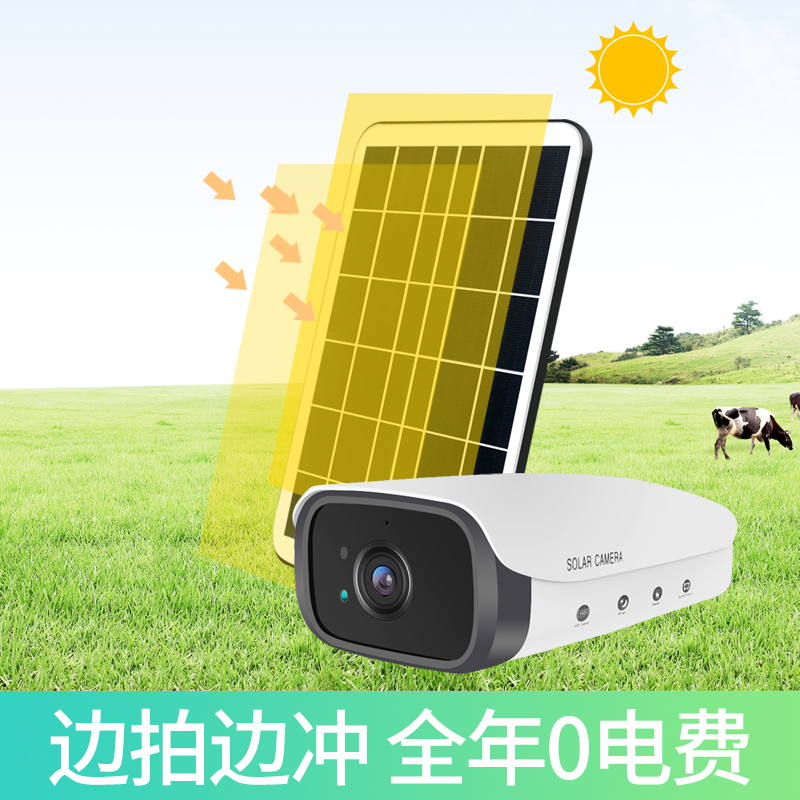

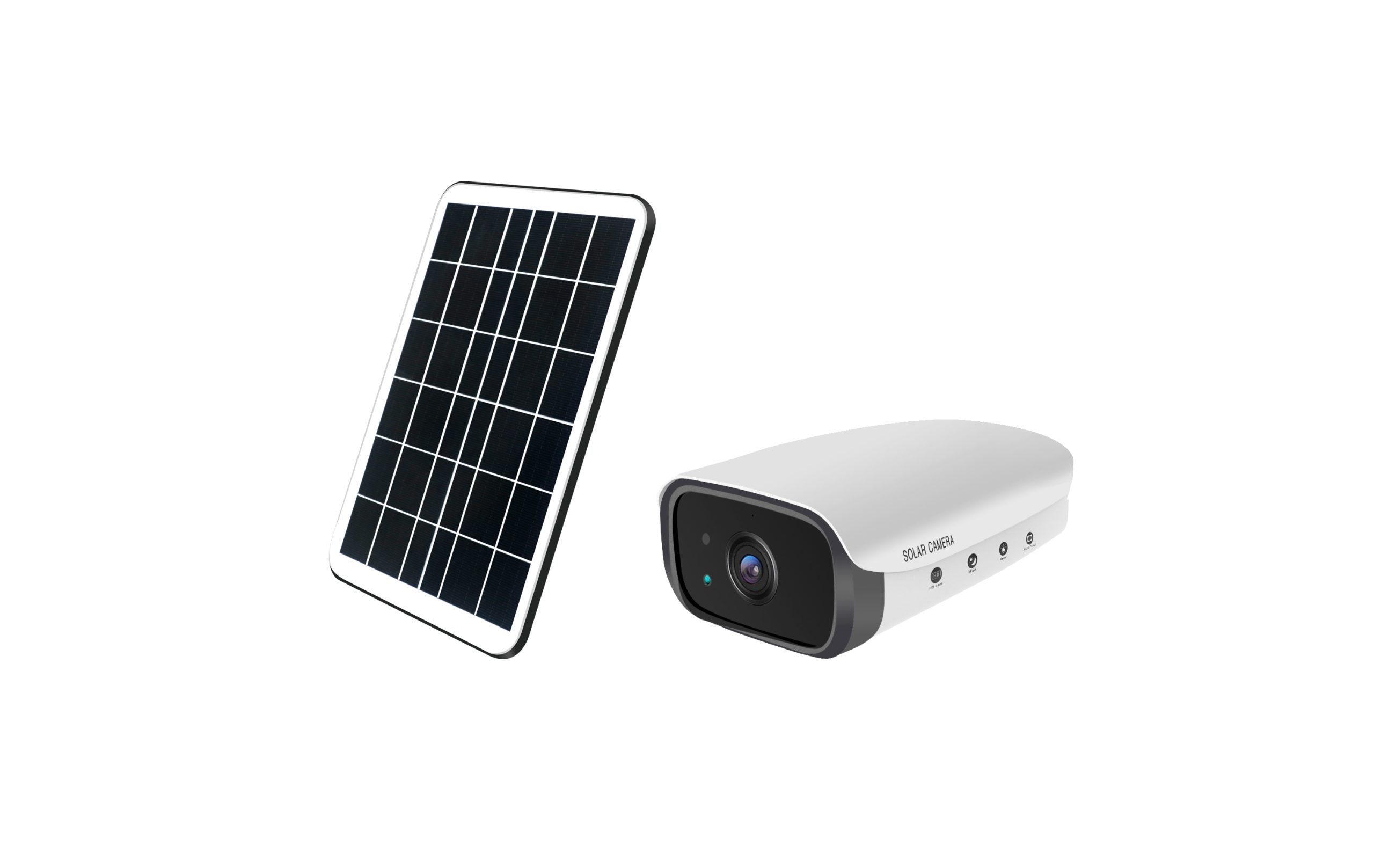

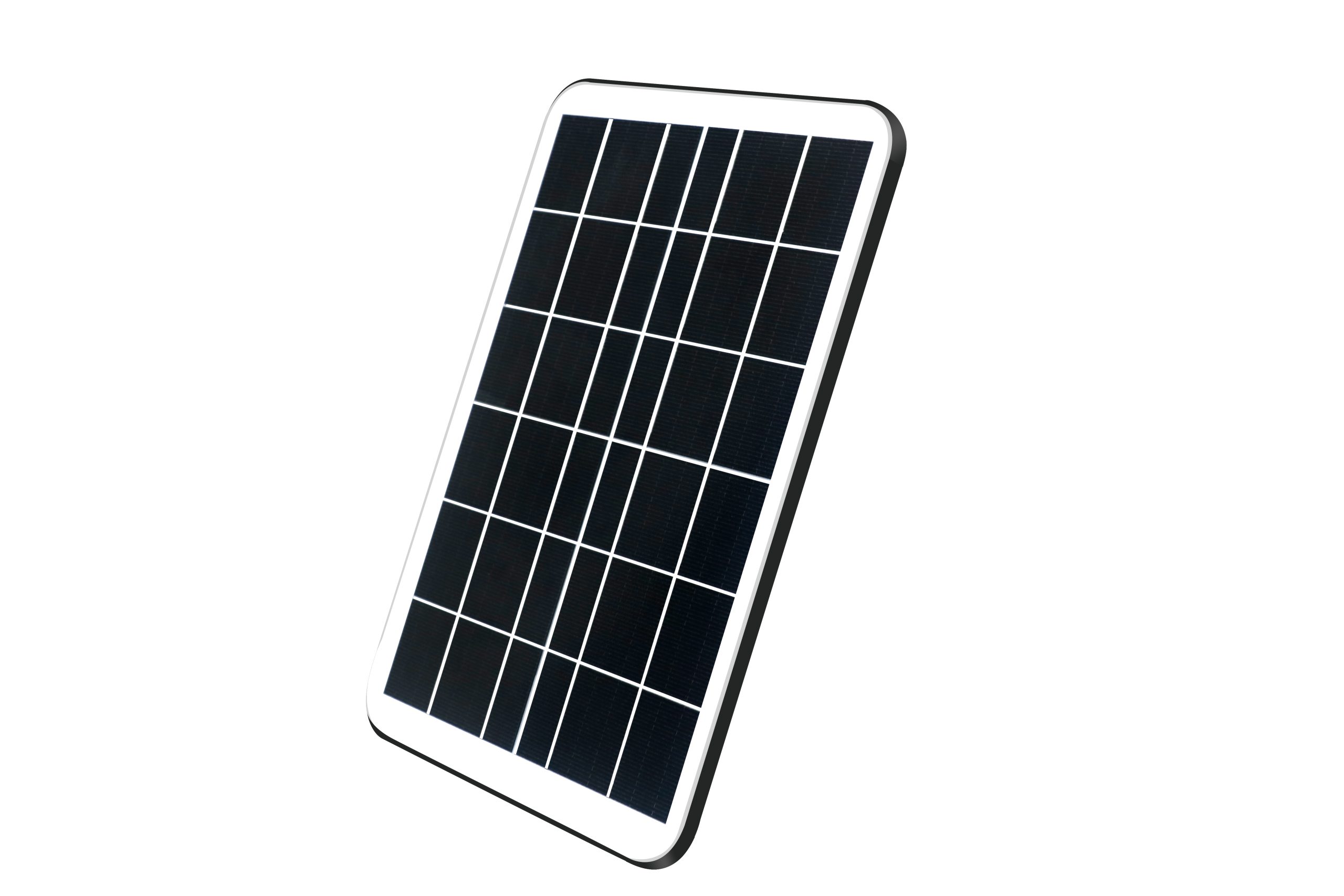

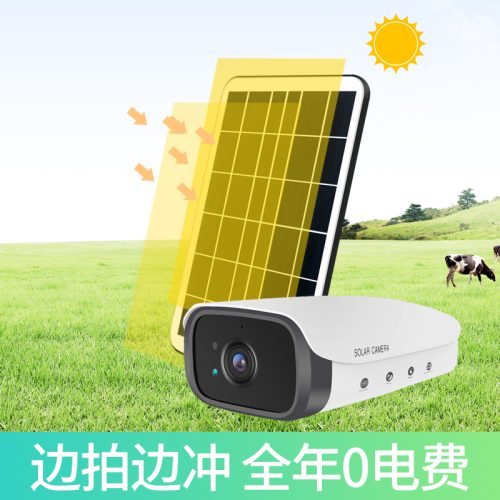

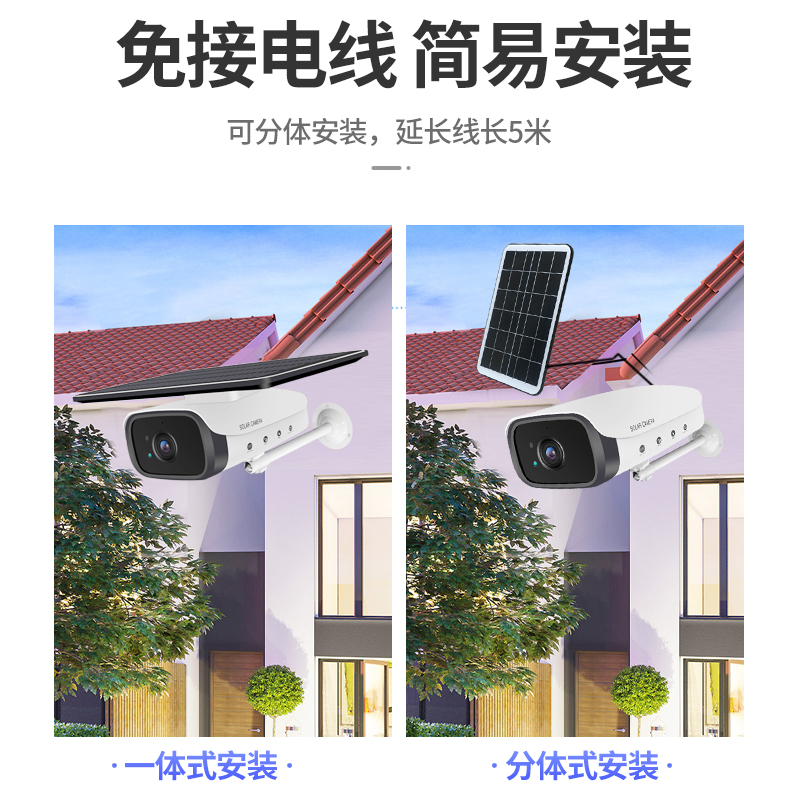

and is charged by the upper solar panel and the external solar panel.
※ Ultra-low power consumption, super long time standby, and intelligent power saving function, standby time more than 150 days;
Charging by solar energy, the equipment can be maintained used without maintenance throughout the year
※ Uses 1/3 high-definition photosensitive chip; Picture resolution: 1080p, 2MP;Clear and delicate picture quality , good color reproduction
※ With ICR double filter switcher, automatic color turn black, built-in 2Pcs LED low power infrared lamp, can effectively improve the night vision sharpness;
※ High power WiFi module built into the equipment, external professional customized WiFi antenna, stronger receiving WiFi signal stability, do not drop the line,distance is far, no drop.
※ Radar function: After setting, the human body is detected, and the camera can immediately push the alarm information to the mobile APP.
※ Remote wake-up function, PIR alarm push function, mobile phone app response in time, anytime to see;

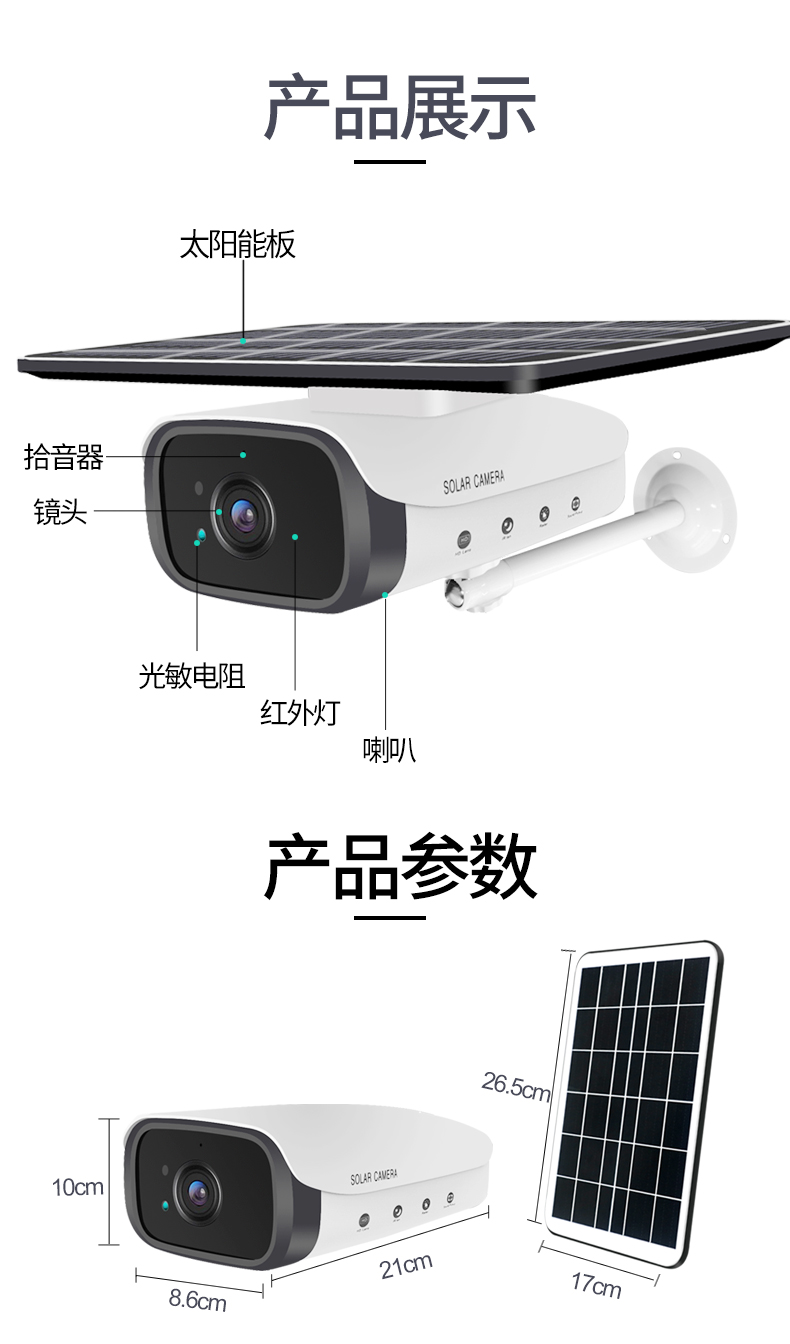

※ Built-in pickup, horn, users can monitor through the mobile phone app, and can realize real-time remote video voice intercom;
※ Using High-performance DSP codec chip, the host can deal with a variety of complex situations, rapid response;

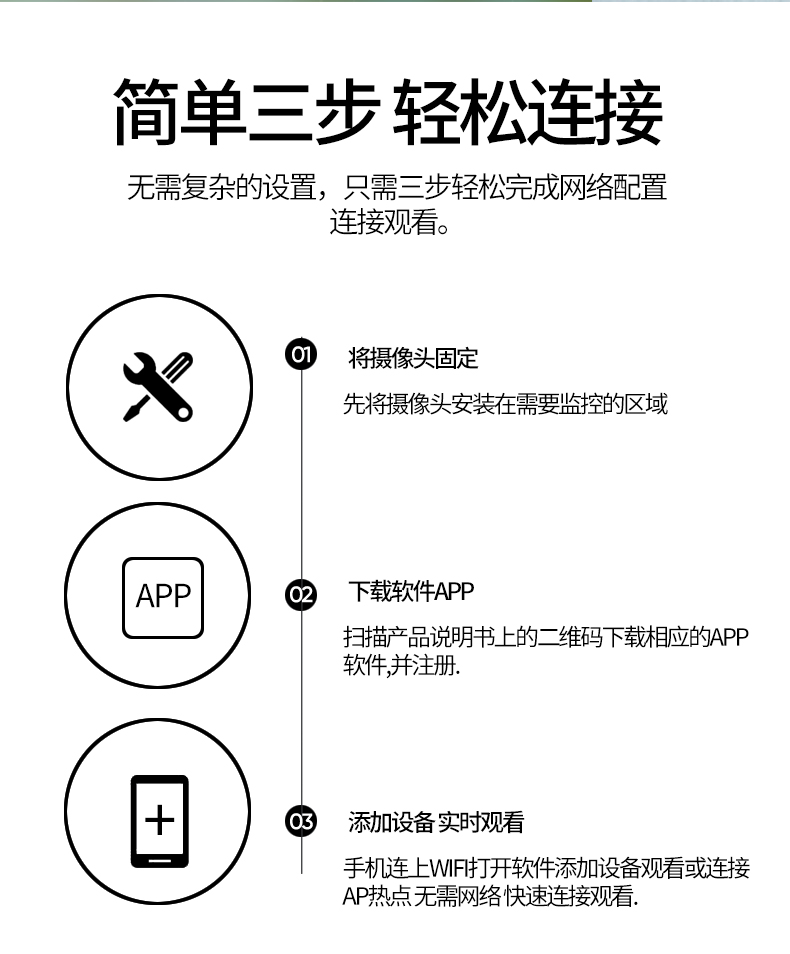

※ Good experience of low-power equipment dedicated app, simple operation, full-featured, product settings can be set through the mobile phone app;
※ Supports maximum 128G TF card storage, or select cloud storage to meet different customer requirements. Up to 160 hours of recording and automatic overlay can be set, and you can View alarm video on your phone APP
※ Product support network recording, after configured WIFI, such as network interruption, PIR alarm can be normal triggered and recorded, connected to the network, you can read the recording information;
※ Professional factory production;

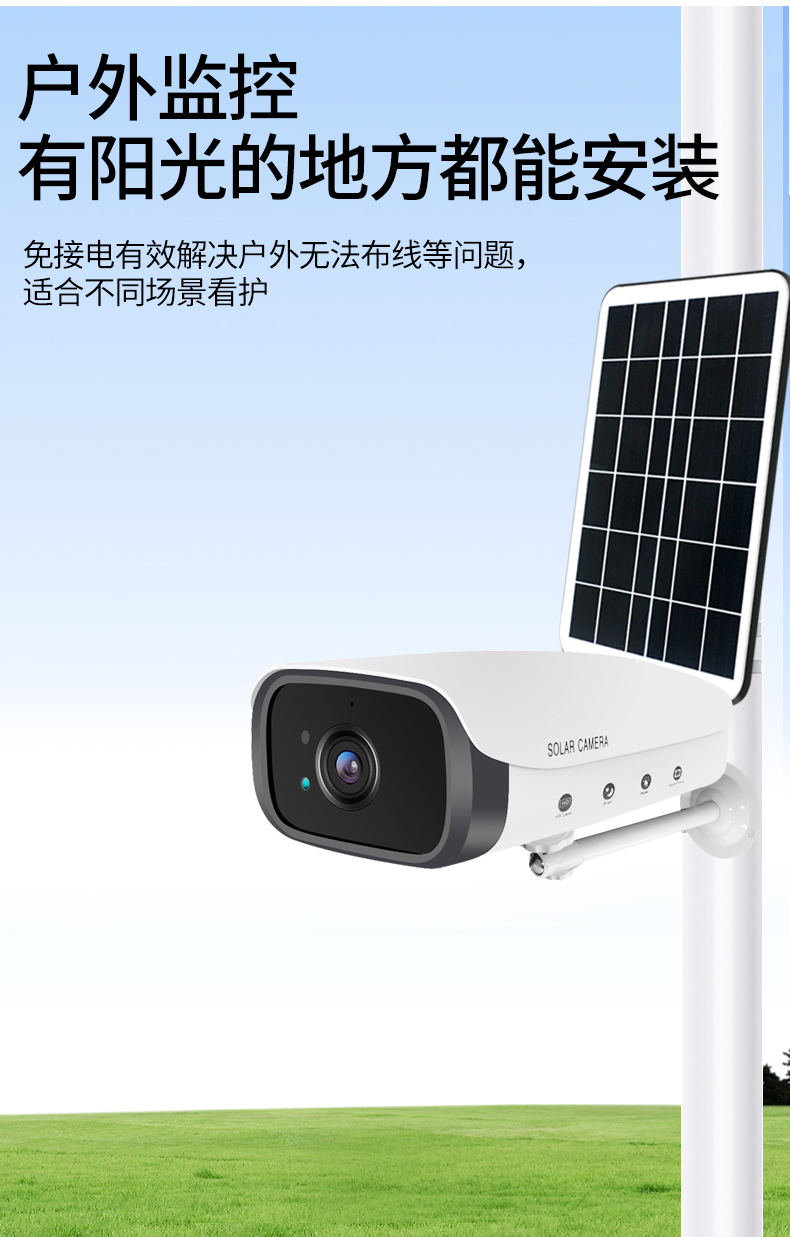

Product application range:
The product waterproof rating is high: IP65;Solar camera powered by battery and solar, no wiring, maintenance-free, suitable for all kinds of inconvenient outdoor environment,For example, villas, neighborhoods, courtyards, fish ponds, orchards, vegetable fields, outdoor pet houses and so on. Sensitive PIR body induction alarm, in the WIFI environment, you can wake up the device remotely at any time, watch the video.

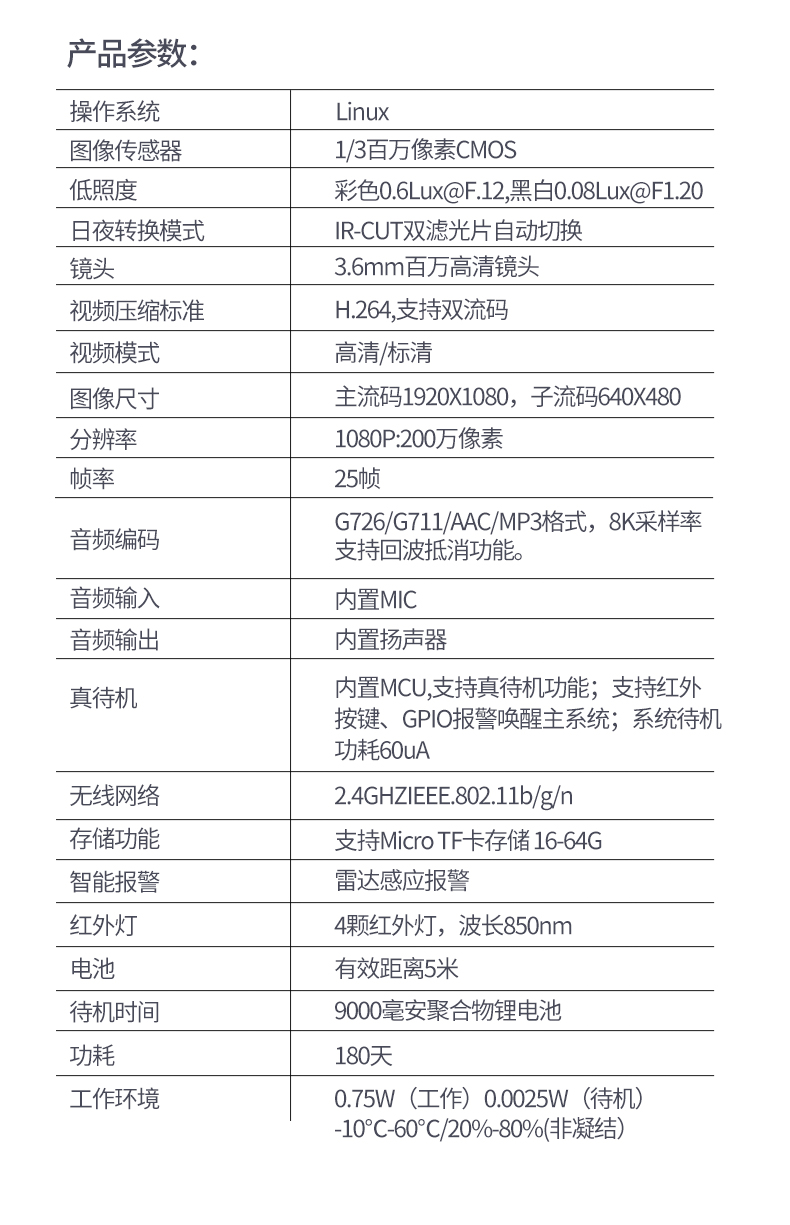

Operating system | Linux |
Image sensor | 1/3 million pixel CMOS |
Minimum illumination | Color 0.6 lux@f1.2, black and white 0.08 lux@f1.2,0 Lux ir Open |
Day and night mode | Ir-cut Double Filter Automatic switching |
Lens | 3.6MM million HD lens |
Video compression | H.264, support dual code flow |
Video mode | HD/SD |
Maximum image size | Main stream 1920×1080; sub-code stream: 640×480; |
Resolution | 1080P: 2MP |
Frame rate | 25 Frames |
Audio coding | G726, G711, AAC, MP3 format, 8K sampling rate, support echo cancellation function |
Audio input | Built-in mic |
Audio output | Internal speaker |
Real Standby | Built-in MCU, support true standby function, support infrared, key, Gpio alarm wake-up main system; system standby power consumption 60uA |
Wireless network | 2.4GHzIEEE 802.11b/g/n |
Storage Features | Support Micro SD card storage, Max 128G |
Intelligent Alarm | Mobile smart sensor alarm, AI smart tracking and shooting |
Infrared lamp | 2pcs LED light, wavelength 850nm, effective distance of 10 meters |
Battery | 10200 mah polymer lithium battery, charge voltage: 5v2a |
Standby time | 150 days |
Power | 0.75W (work) 0.0025W (standby) |
Working environment | –10°c~60°c/20%~85% (non condensation) |
